RAV4 wheels gallery: real builds by wheel finish

Finish: Bronze and gold   Setup: 2-inch lift   Tires: Toyo Open Country A/T III, 245/65R17

From True Performance Motorsport's Instagram, May 2024.

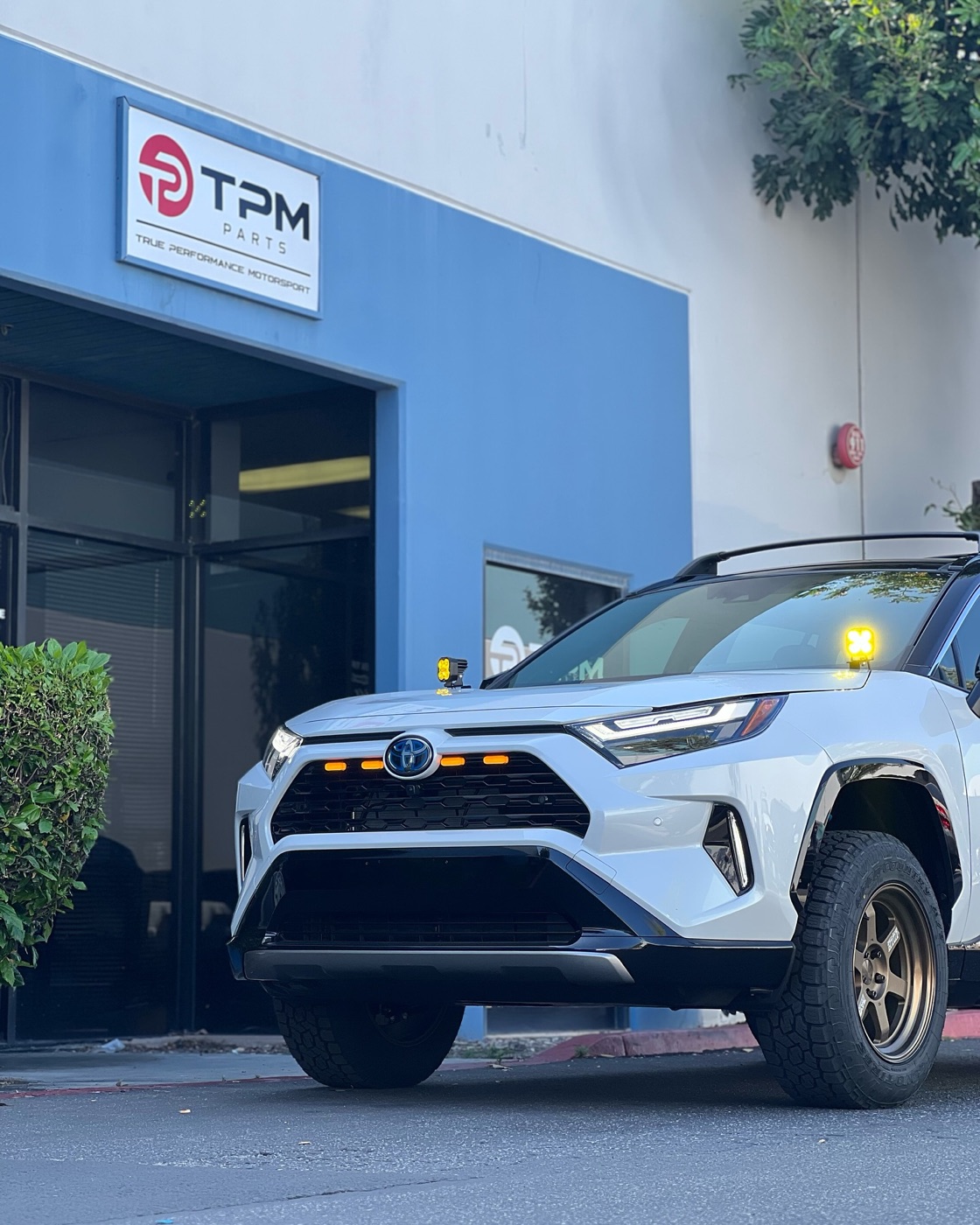

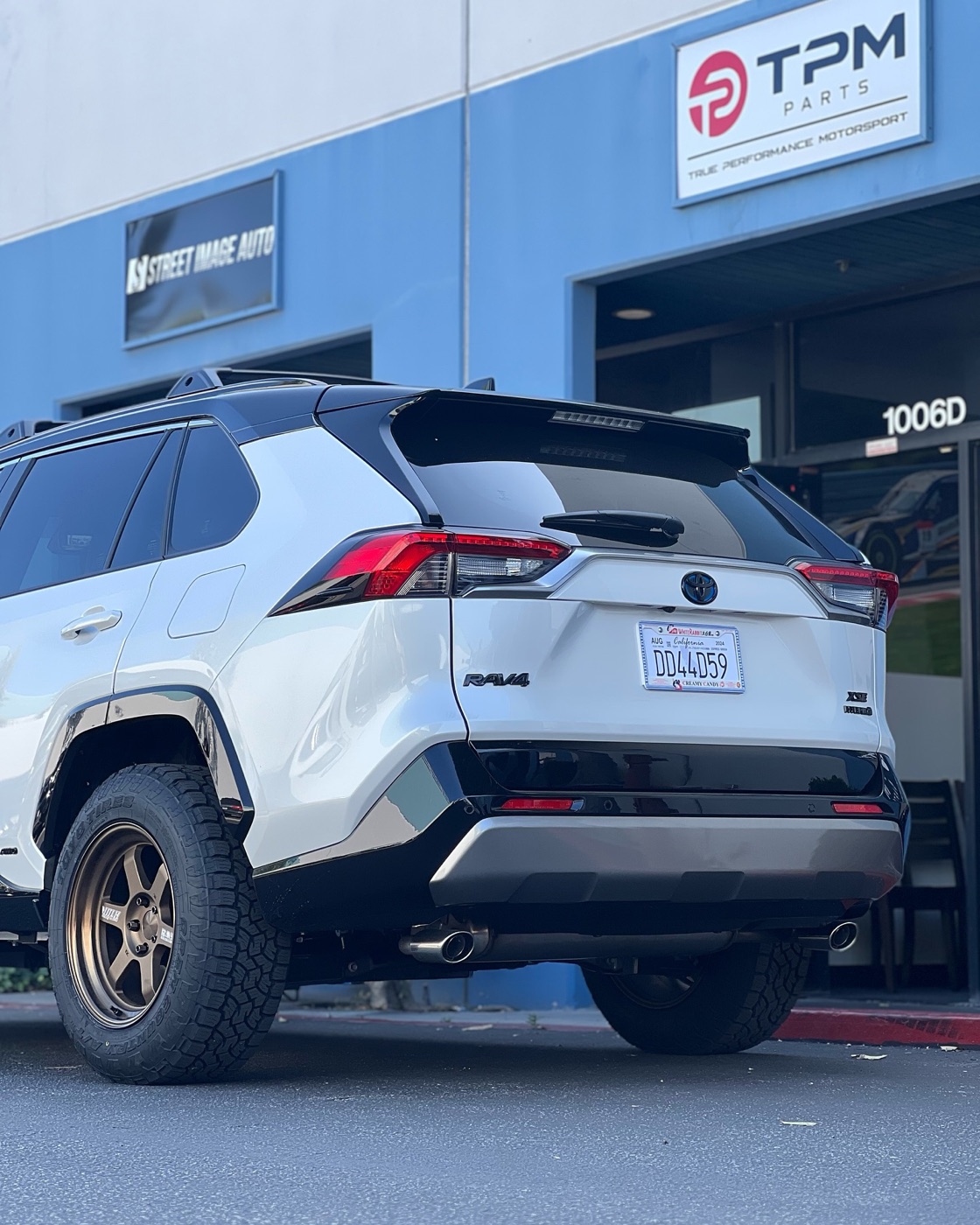

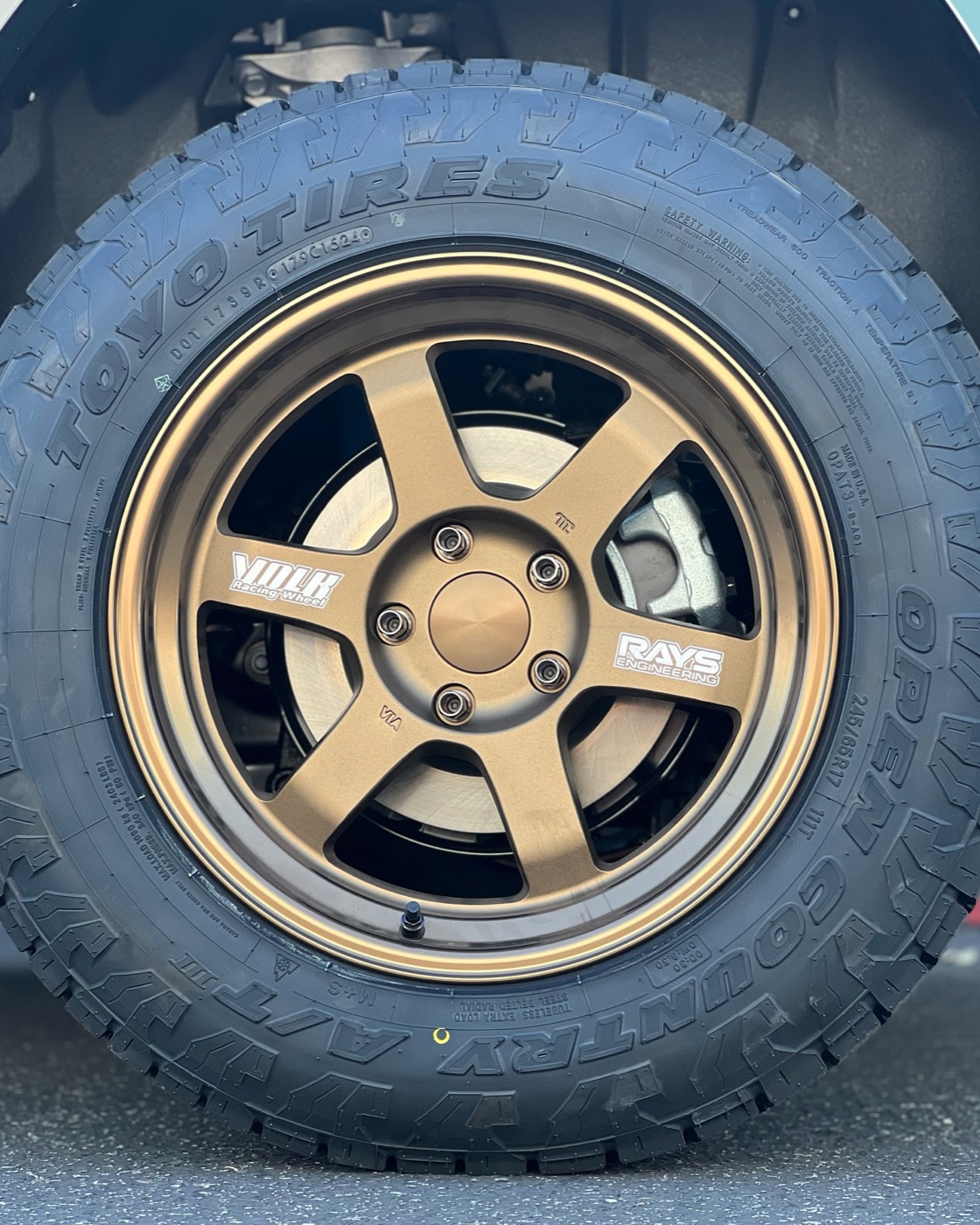

• Bronze Volk Racing TE37 wheels on Toyo Open Country A/T III tires in 245/65R17, with a 2-inch lift, on a new white RAV4 Hybrid XSE with the black roof.
• The shop didn't give the wheel size, offset or lift brand. Check that the lift fits a hybrid before copying it.
• It has amber grille lights and amber ditch lights, like the gas XLE on bronze TE37Vs below, but it's a different car.

Finish: Bronze and gold   Setup: 1.5-inch lift and trimming   Tires: Toyo Open Country A/T III, 265/65R17

From Heyitzsushiboi's post on the RAV4World forum, June 2025.

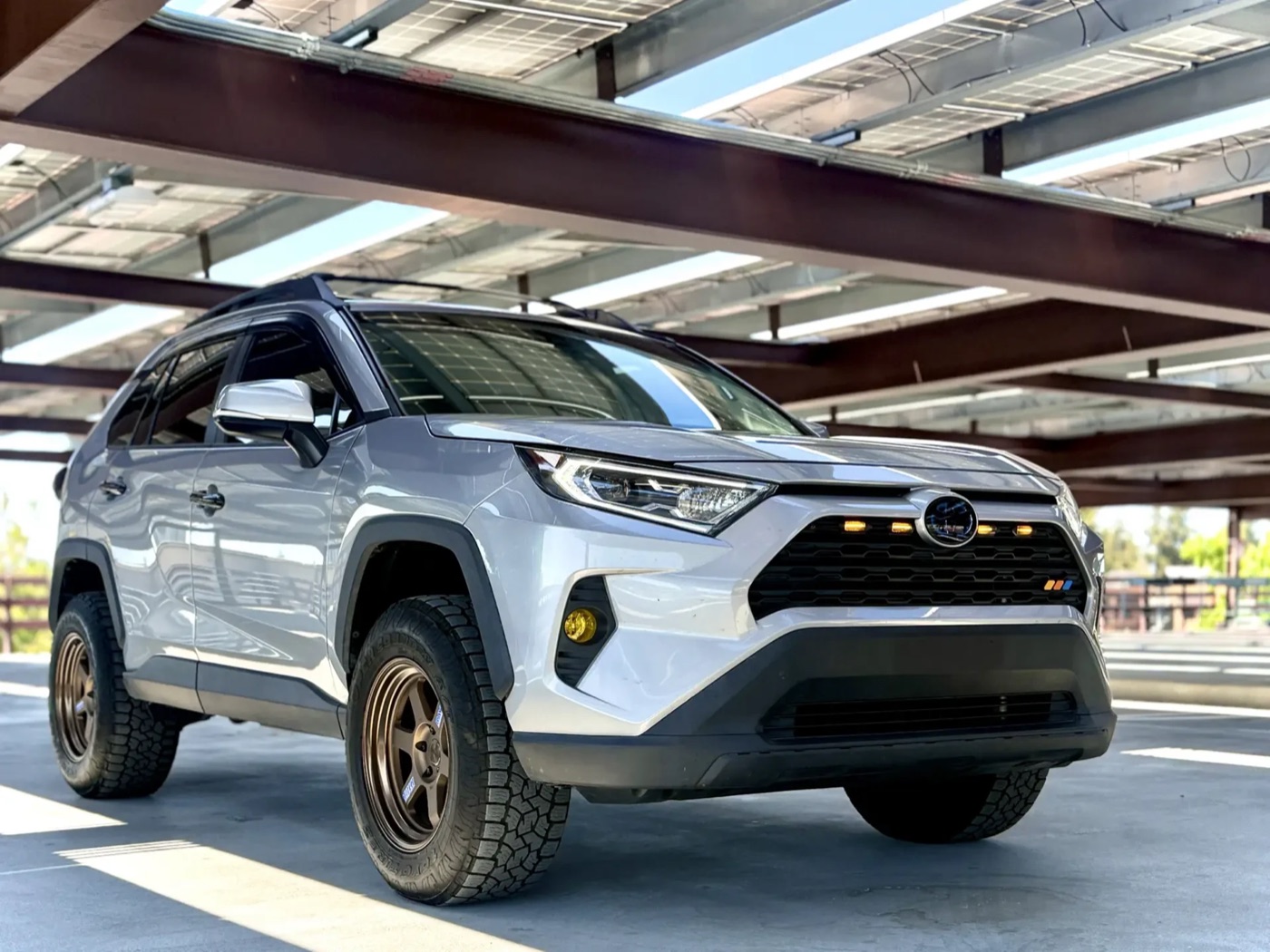

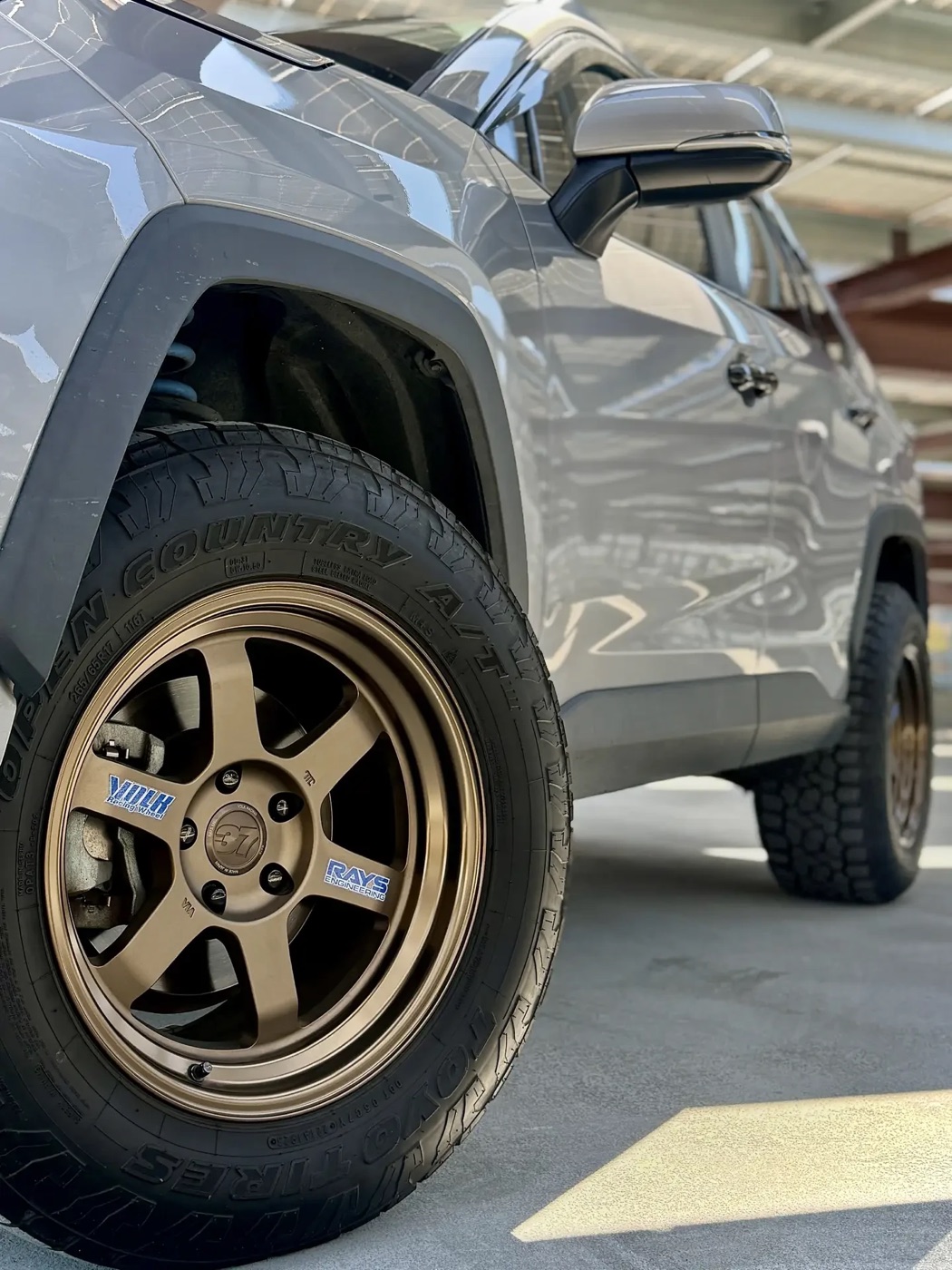

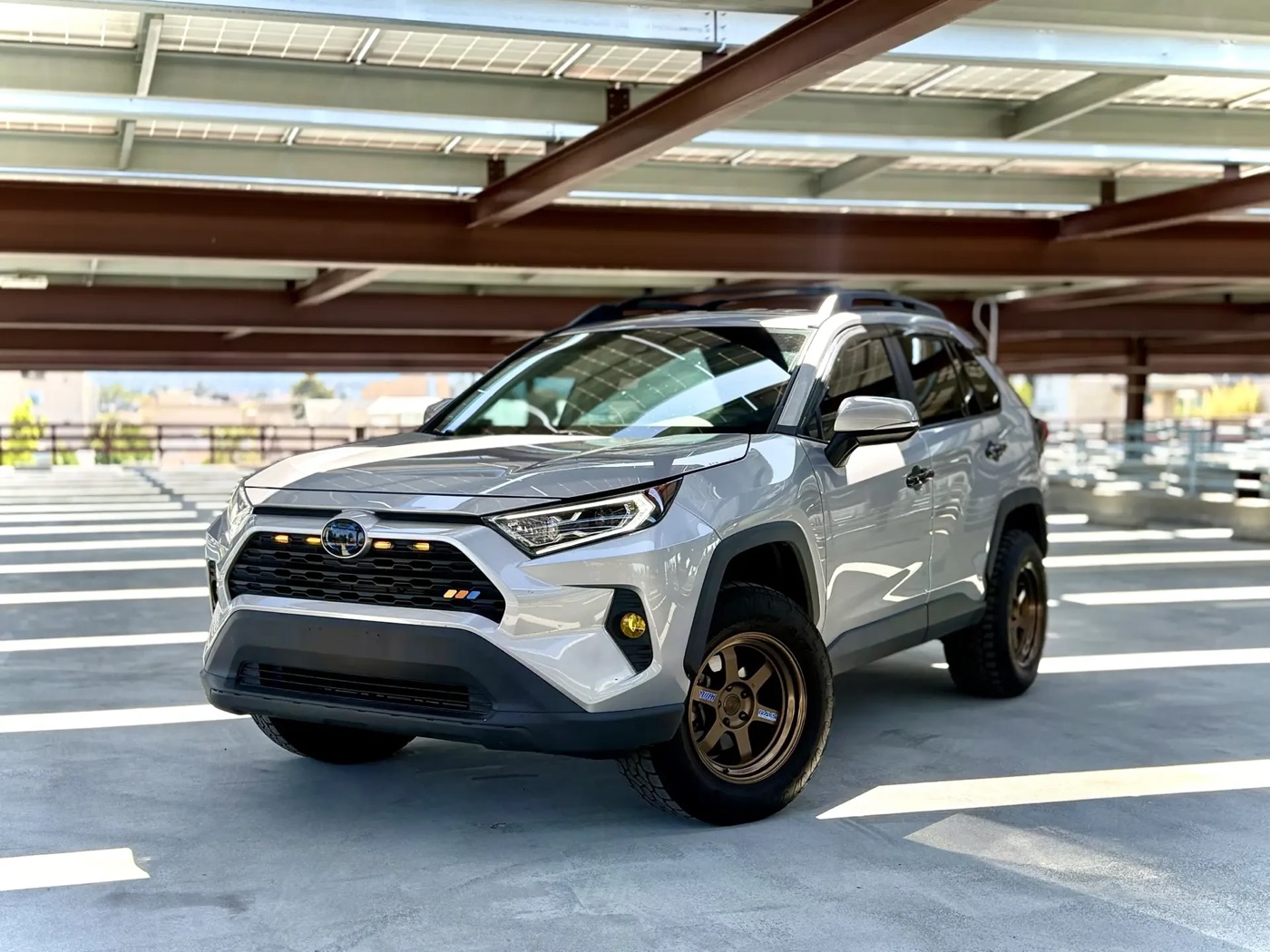

• Toyo Open Country A/T III in 265/65R17, about 30.6 inches tall and 2 inches taller than stock, on Volk Racing TE37V forged wheels, 17x9.5 with a +15 offset.
• It took a 1.5-inch Northwoods Stage 2 lift, removing the front wheel-well mud guards and hammering flat the pinch welds, and it still rubs slightly at full steering lock.
• The wide 9.5-inch wheel and +15 offset push the tire out about an inch past where a stock-offset wheel sits, which is a big part of the look and of the rubbing.
• Check that the lift fits a hybrid before copying it; most don't.

Finish: Bronze and gold   Setup: Stock height   Tires: Yokohama Geolandar, 235/65R17

From LunaTheLunarRock's post on the RAV4World forum, October 2025.

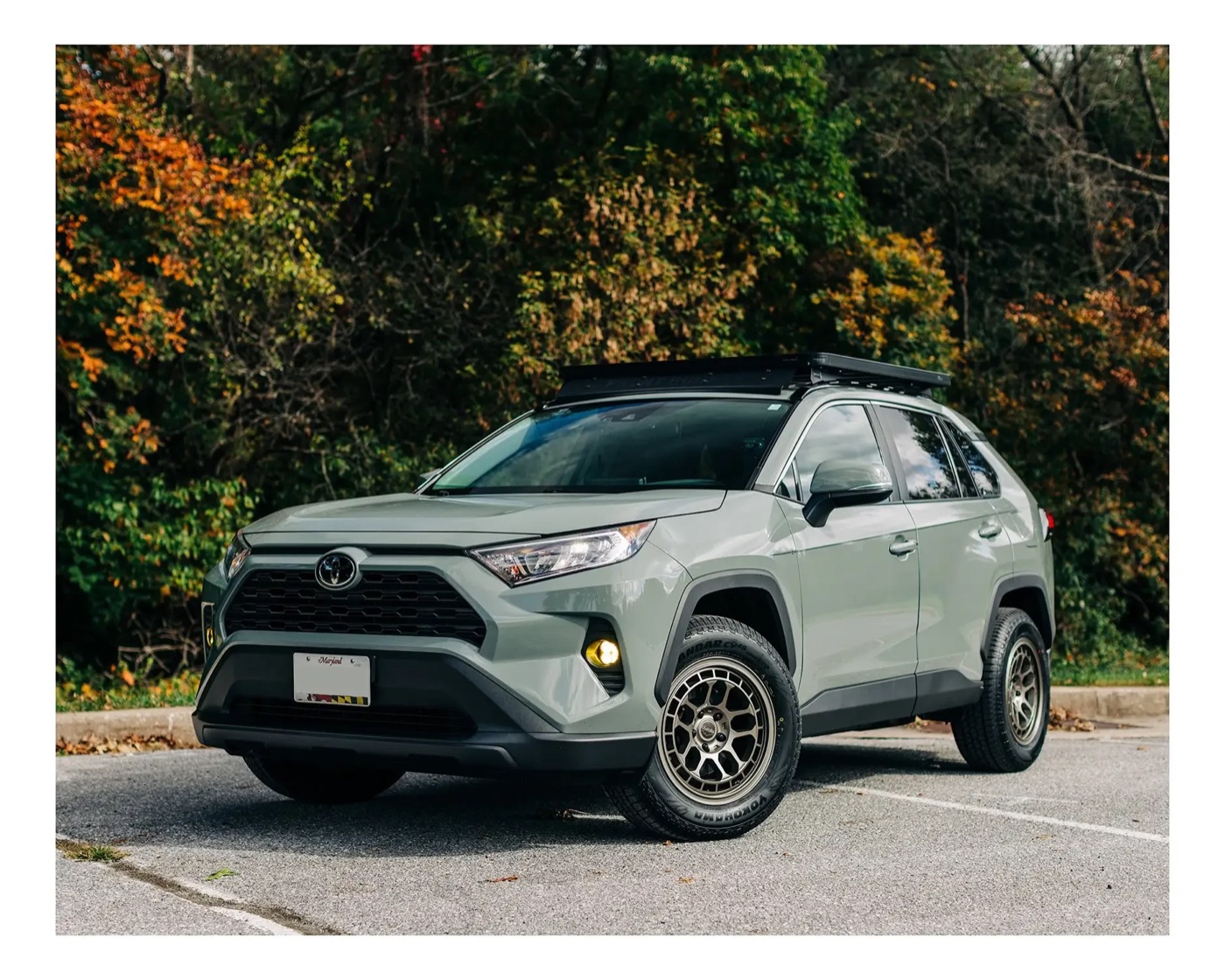

• A 2021 RAV4 XLE AWD in Lunar Rock on Reika R30 wheels, 17x8 with a +20 offset, and Yokohama Geolandar tires in 235/65R17.
• The sidewall in the photo reads Geolandar CV, Yokohama's crossover highway tire, not the G015 all-terrain. So most of this rugged look comes from the bronze wheel and the taller 17-inch sidewall, not the tread.
• That's good news for winter: a real winter tire in 235/65R17 on a wheel like this would look much the same.
• The +20 offset sits the wheel about 15 to 20 mm further out than the +35 to +40 a RAV4 normally runs, so check for rubbing before copying it.

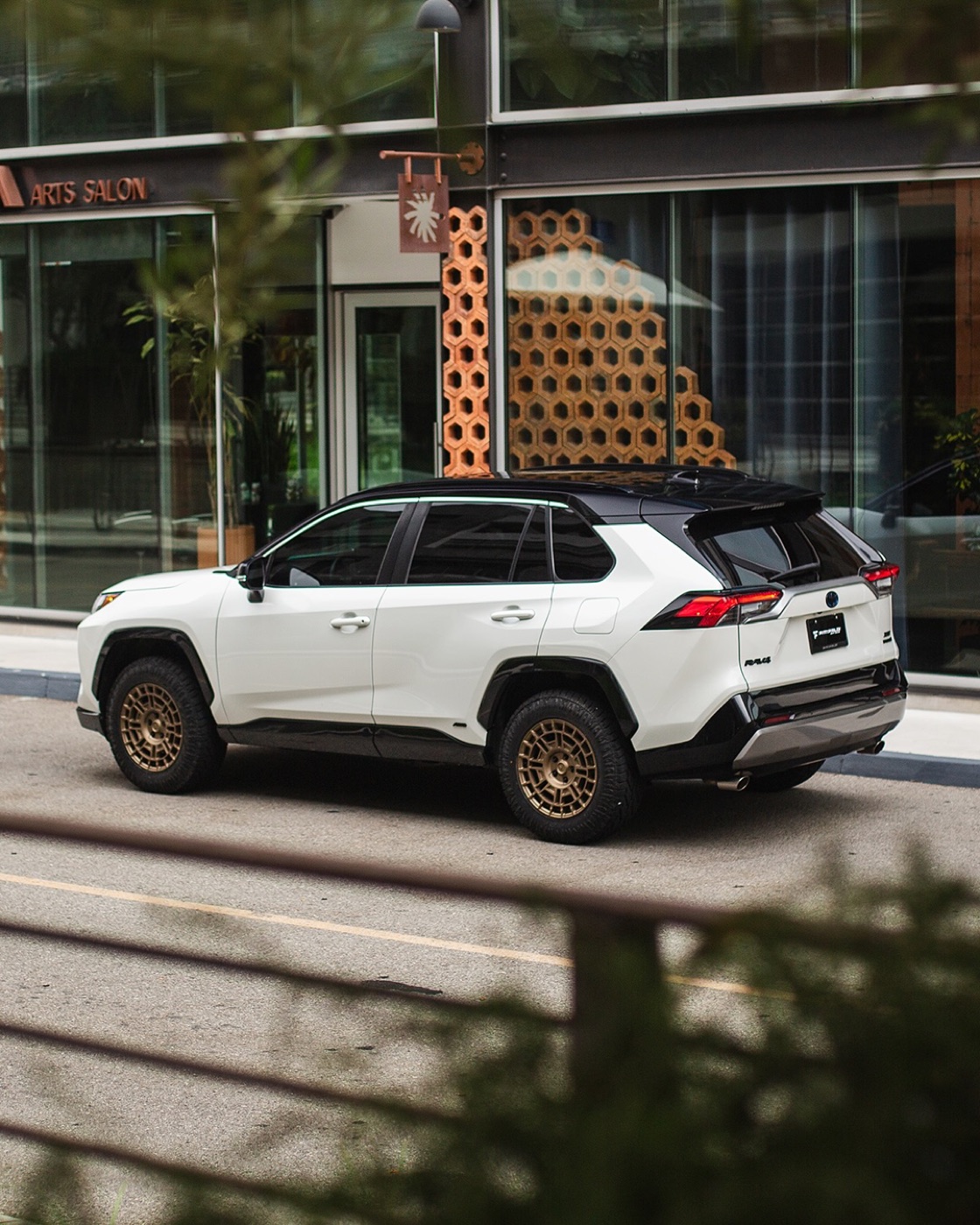

Finish: Bronze and gold   Setup: Stock height   Tires: Atturo, 245/65R17

From Fittipaldi Off Road Wheels' Instagram.

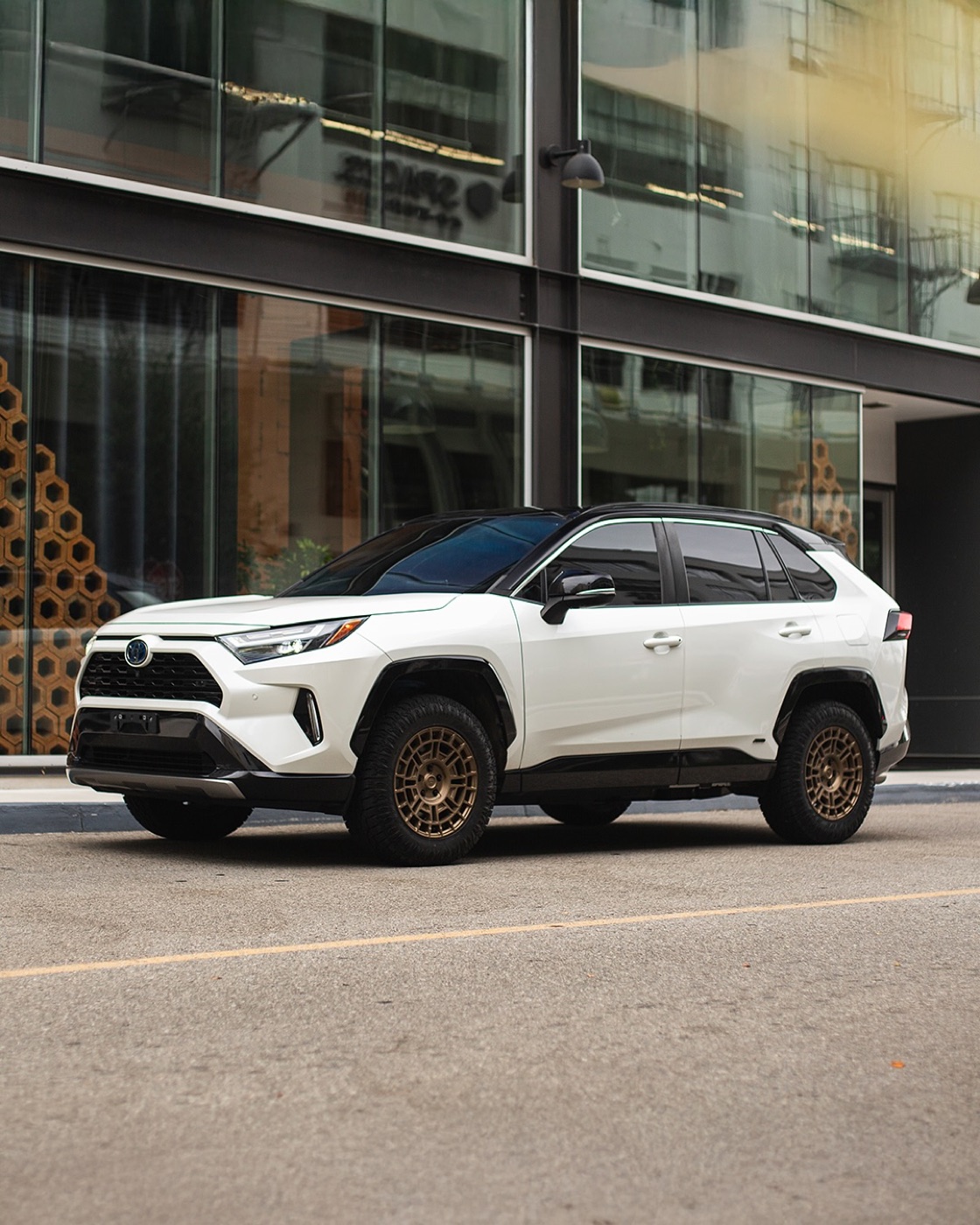

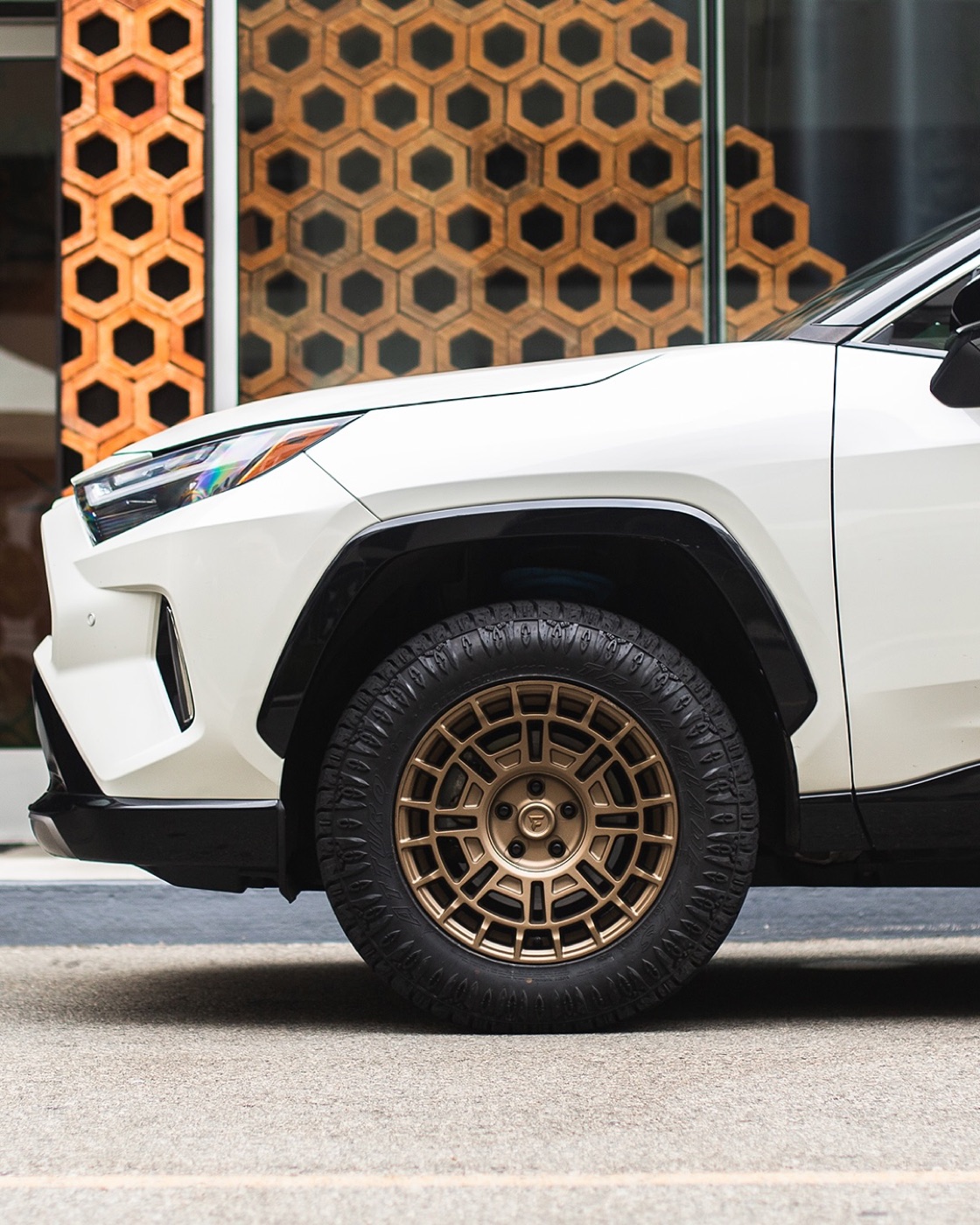

• Fittipaldi FT109 in satin bronze, 17x8 with a +35 offset, on Atturo tires in 245/65R17. The post doesn't name the Atturo model.
• If you have a white pearl XSE with the black roof, this is the closest picture of bronze on your car.
• The FT109 has many thin spokes, so it reads busier from the side than a five- or six-spoke wheel.

Finish: Bronze and gold   Setup: Stock height   Tires: BFGoodrich KO2, LT255/65R17

From Perfection Wheels' gallery.

• Icon Alloys Ricochet in satin gold, 17-inch with a +38 offset, on BFGoodrich KO2 tires in LT255/65R17, at stock height on a white 2021 RAV4.
• The tires are turned so the raised white letters face out, which adds a lot to the look.
• LT255/65R17 is about 30 inches tall and a heavy light truck tire, so expect it to cost mileage.

Finish: Graphite, gunmetal and gray   Setup: Stock height   Tires: Toyo Open Country A/T III, 245/65R17

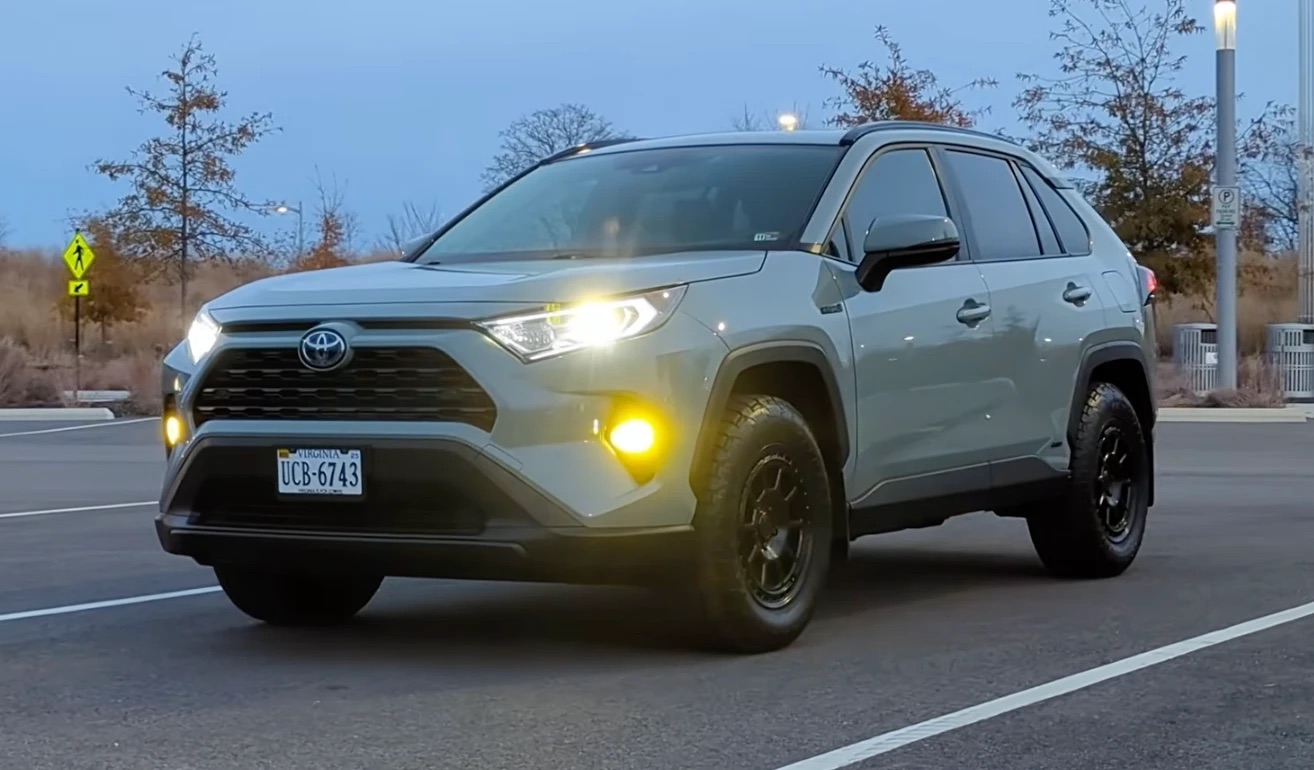

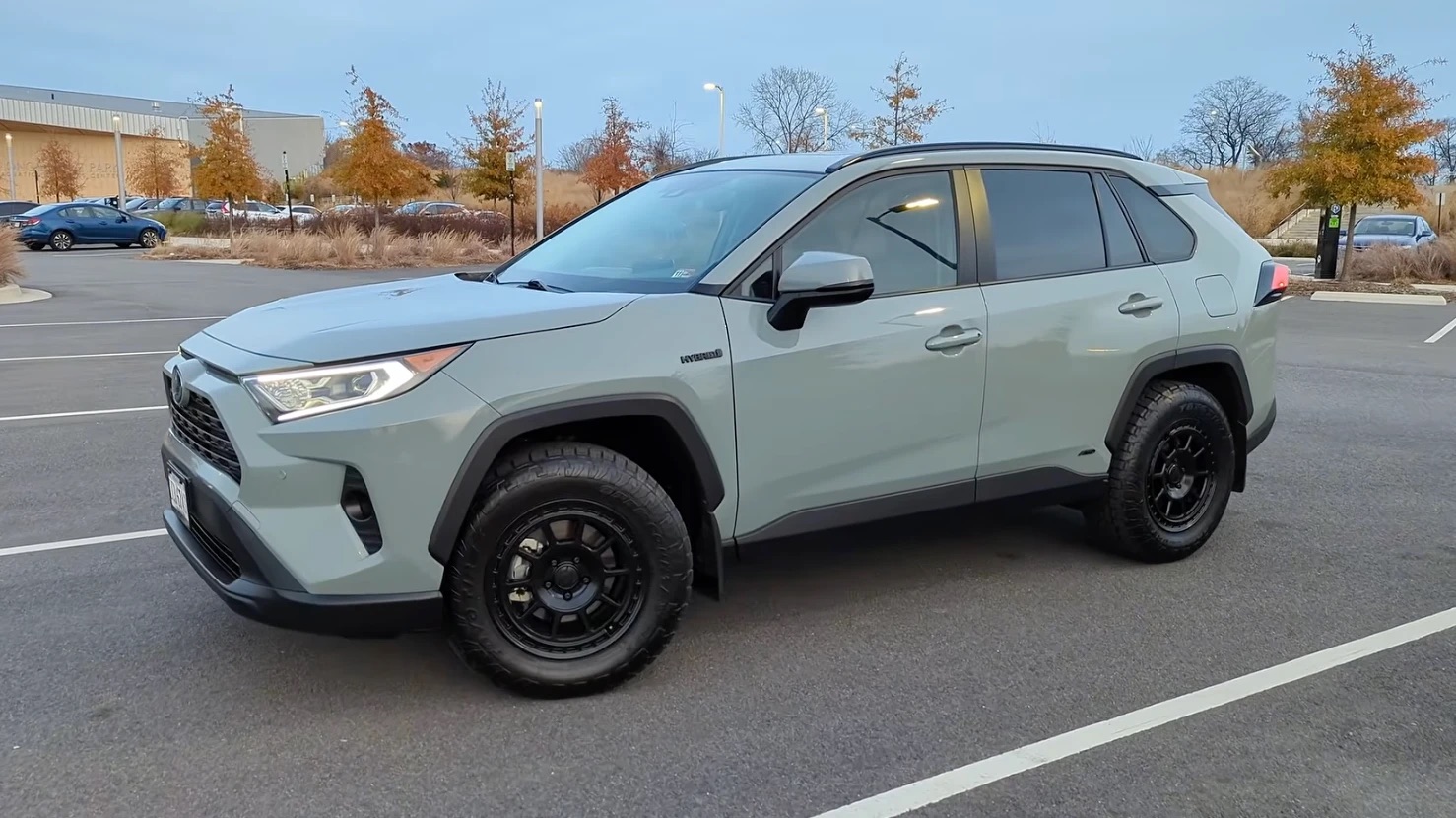

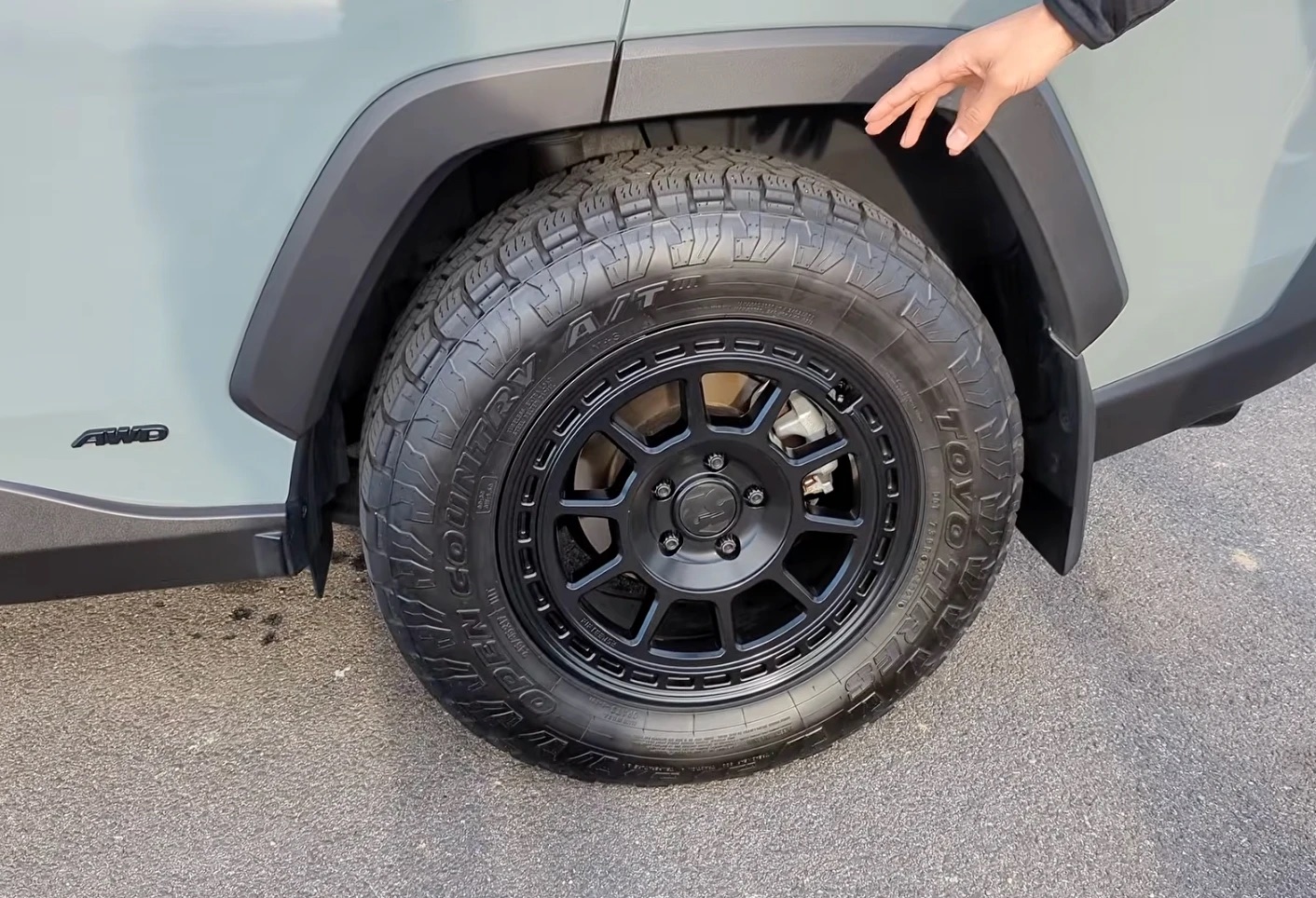

A 2021 RAV4 Hybrid on 245/65R17 Toyo A/T IIIs and 17x8 Fifteen52 Traverse MX wheels. From Carlton Marshall II's video.

• fifteen52 Traverse MX, 17x8, on Toyo Open Country A/T III tires in 245/65R17, at stock height on a 2021 RAV4 Hybrid XLE Premium.
• The Traverse MX has a 73.1 mm center hole, so it needs 73.1 to 60.1 mm hub rings on a RAV4.
• The owner says the tires rub slightly on sharp turns.

Finish: Graphite, gunmetal and gray   Setup: Looks like stock height   Tires: All-terrain, brand not given

From California Wheels' gallery.

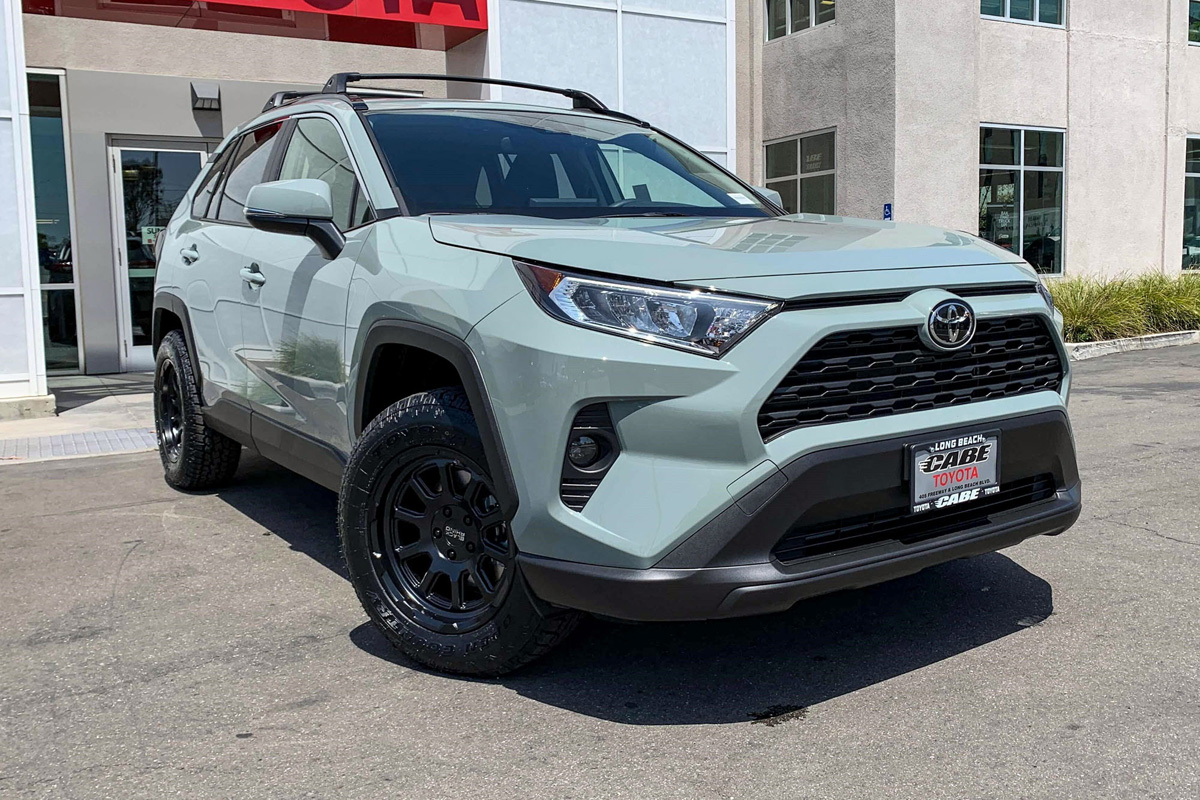

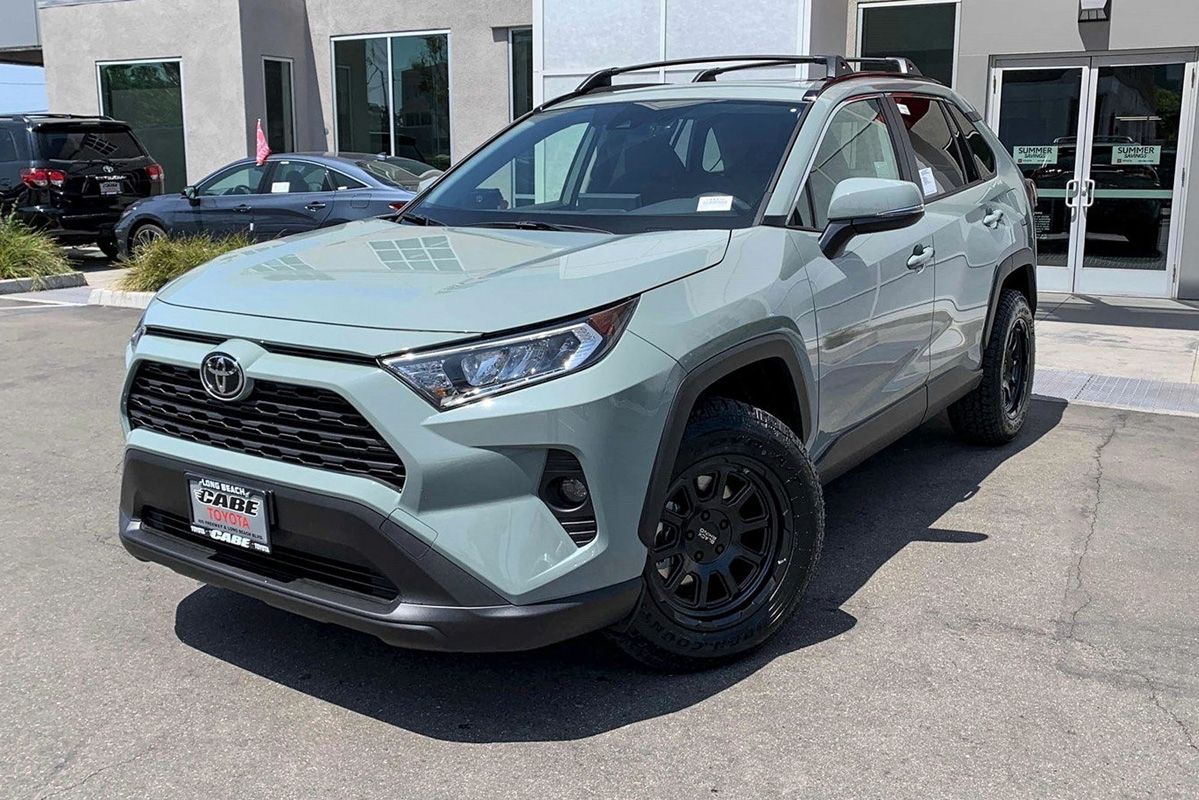

• Black Rhino Chase in brushed gunmetal, 17-inch, on all-terrain tires, on a Lunar Rock 2021 RAV4 XLE at what looks like stock height. The gallery doesn't list the offset or tire.
• A simple six-spoke design in a brushed gunmetal finish. Both photos are from the front, so there's no side view to judge it by.

Finish: Black   Setup: 2-inch lift   Tires: Falken Wildpeak A/T4W, 245/65R17

From j-dee-weee's post on the RAV4World forum, March 2026.

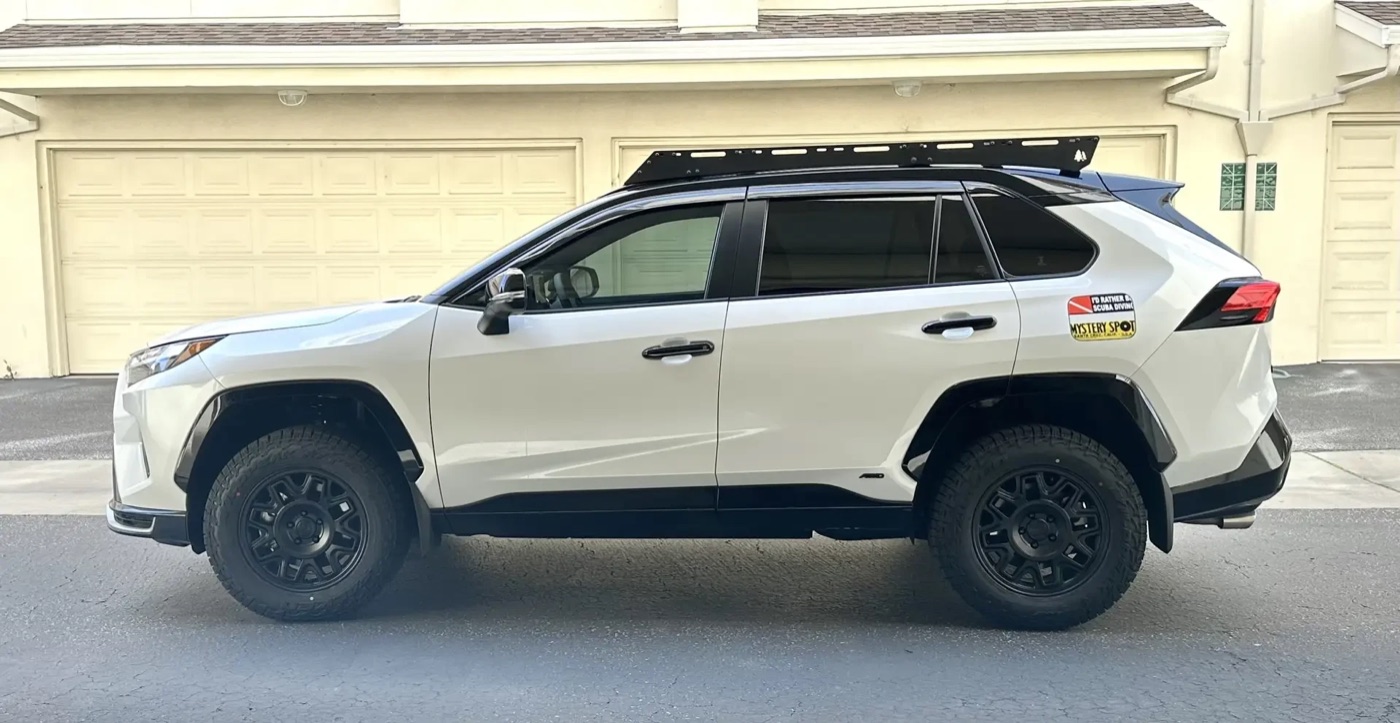

• Falken Wildpeak A/T4W in 245/65R17 on fifteen52 Wander MX wheels, 17x8 with a +38 offset, which is the normal RAV4 offset.
• The lift is a Dobinsons 2-inch kit made for the Prime, with Air Lift 1000 air bags in the rear springs to carry weight. Check whether that kit fits the regular hybrid before copying it.
• The lift raises the body, so there's a bigger gap above the tire than the same 245/65R17 shows at stock height. That gap is a lot of what gives it the off-road look.
• The owner also added a Greenlane roof rack and an Asfir skid plate.

Finish: Black   Setup: Leveling springs and trimming   Tires: Falken Wildpeak A/T3W, 255/70R16

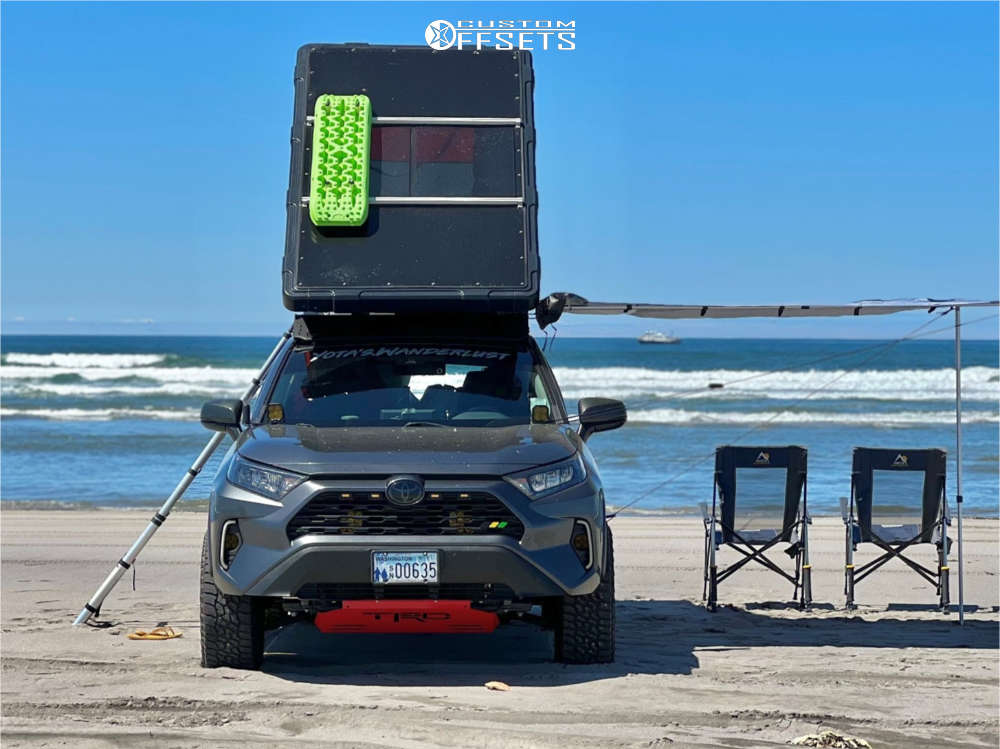

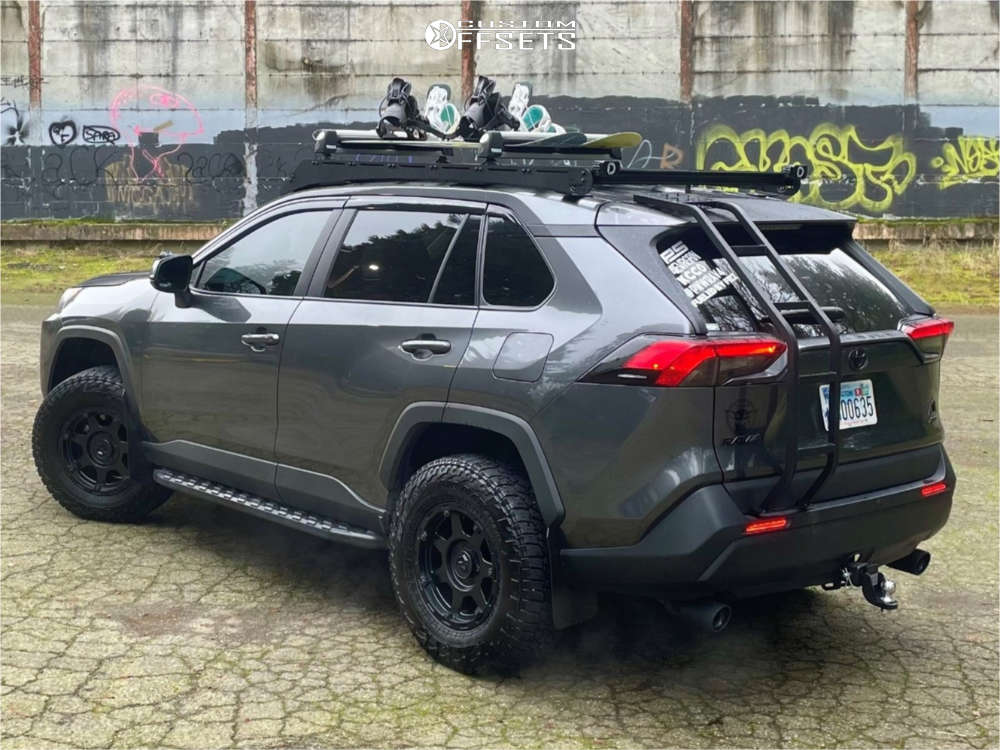

@allroadchiver's RAV4, from Custom Offsets' owner gallery.

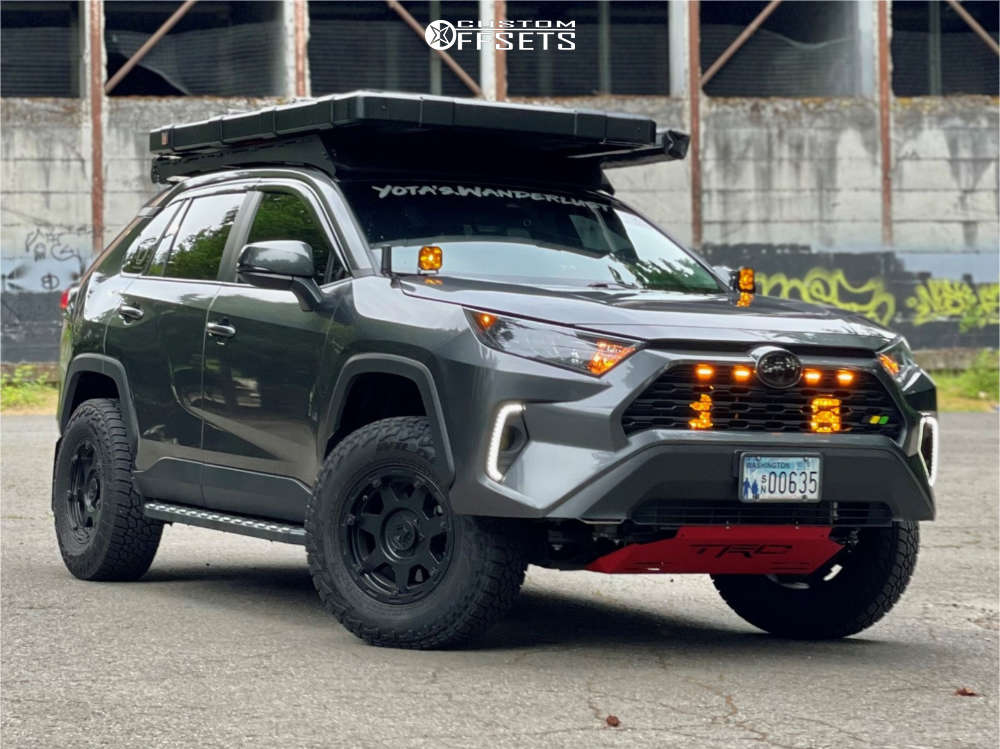

• Falken Wildpeak A/T3W in 255/70R16, about 30 inches tall, on Gear Off-Road Barricade wheels in black, 16x8 with a 0 offset.
• Eibach Pro-Lift springs raise it about 1.7 inches in front and 1.6 in back. The owner trimmed some plastic and it still rubs slightly at full turn.
• The 0 offset puts the tires more than an inch outside the fenders. That's most of this aggressive look, and it's well past the +35 to +40 a RAV4 normally runs.
• The gallery doesn't say whether it's a hybrid, so check that the Eibach springs fit yours before copying it.

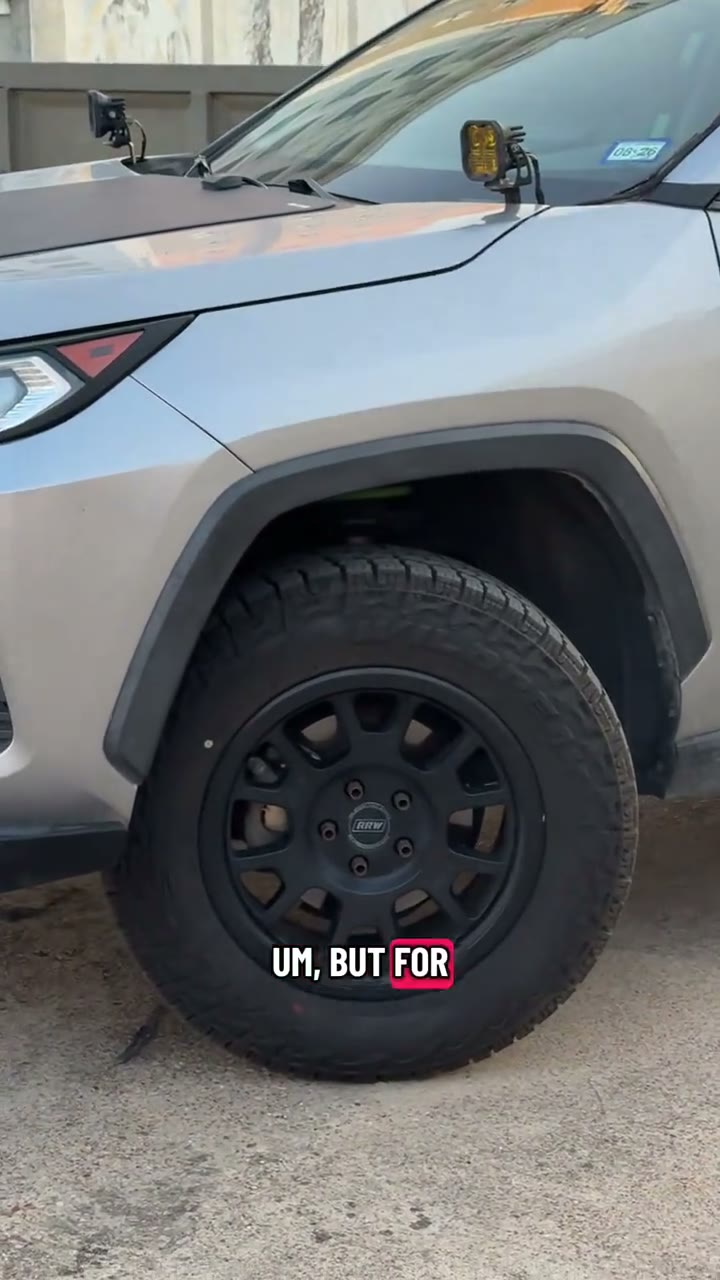

Finish: Black   Setup: 2-inch lift   Tires: Falken Wildpeak A/T, size not given

From @grey_rav4's TikTok, February 2026.

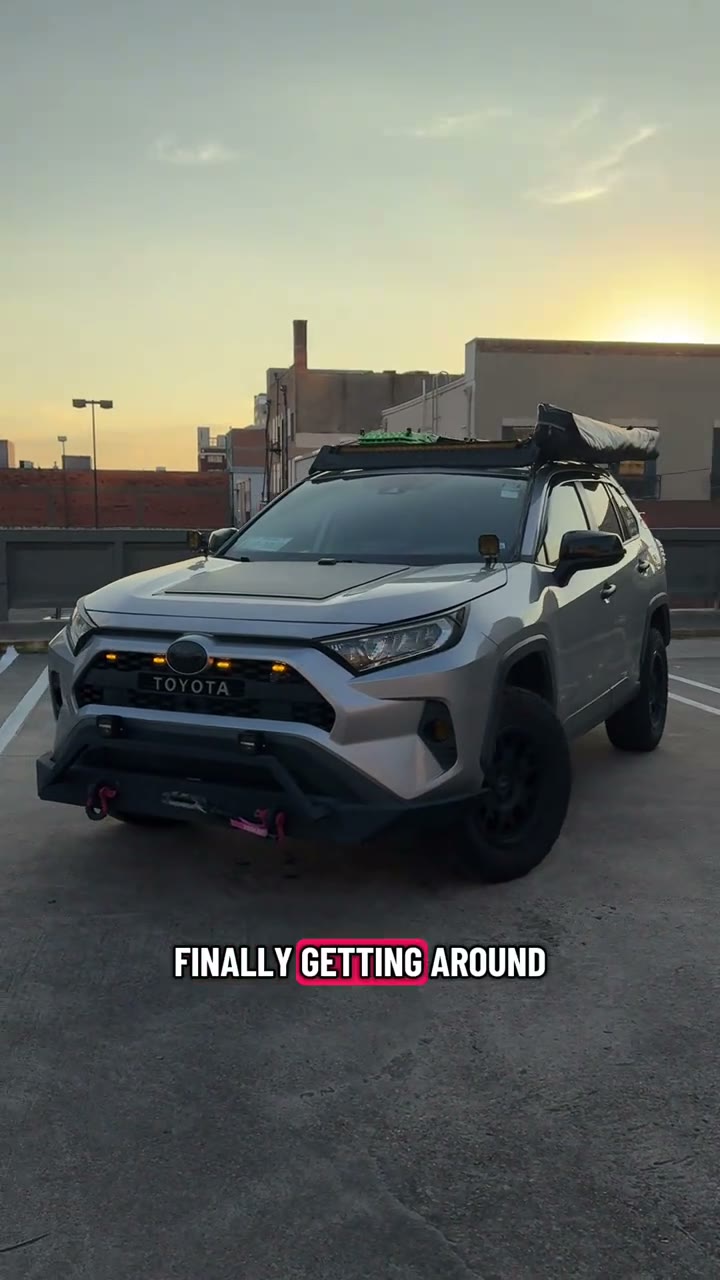

• Falken Wildpeak A/T tires on black Relations Race wheels, which the owner says are no longer made, with a 2-inch Ironman 4x4 lift on a gas RAV4 XLE.
• The owner finds the Wildpeaks "a lot more quieter" than the BFGoodrich tires they had before. Neither size nor version was given.
• They say the lift is their favorite mod because of the stance it gives.

Finish: Black   Setup: 2-inch lift   Tires: Toyo Open Country A/T III, 265/65R17

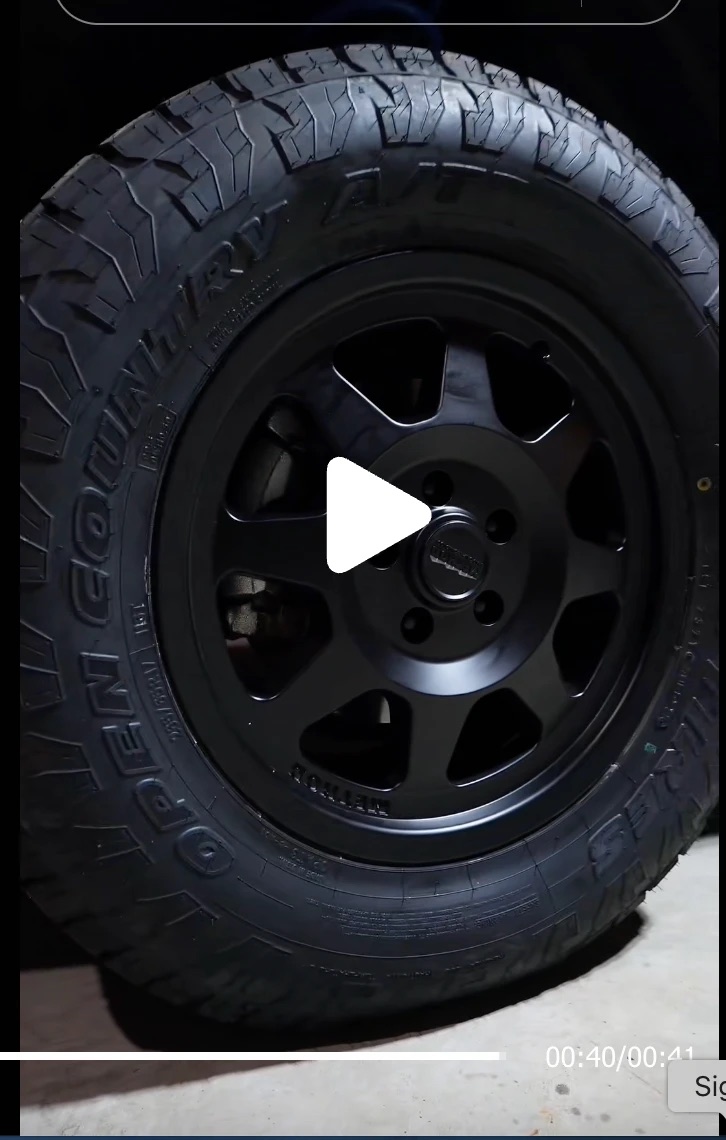

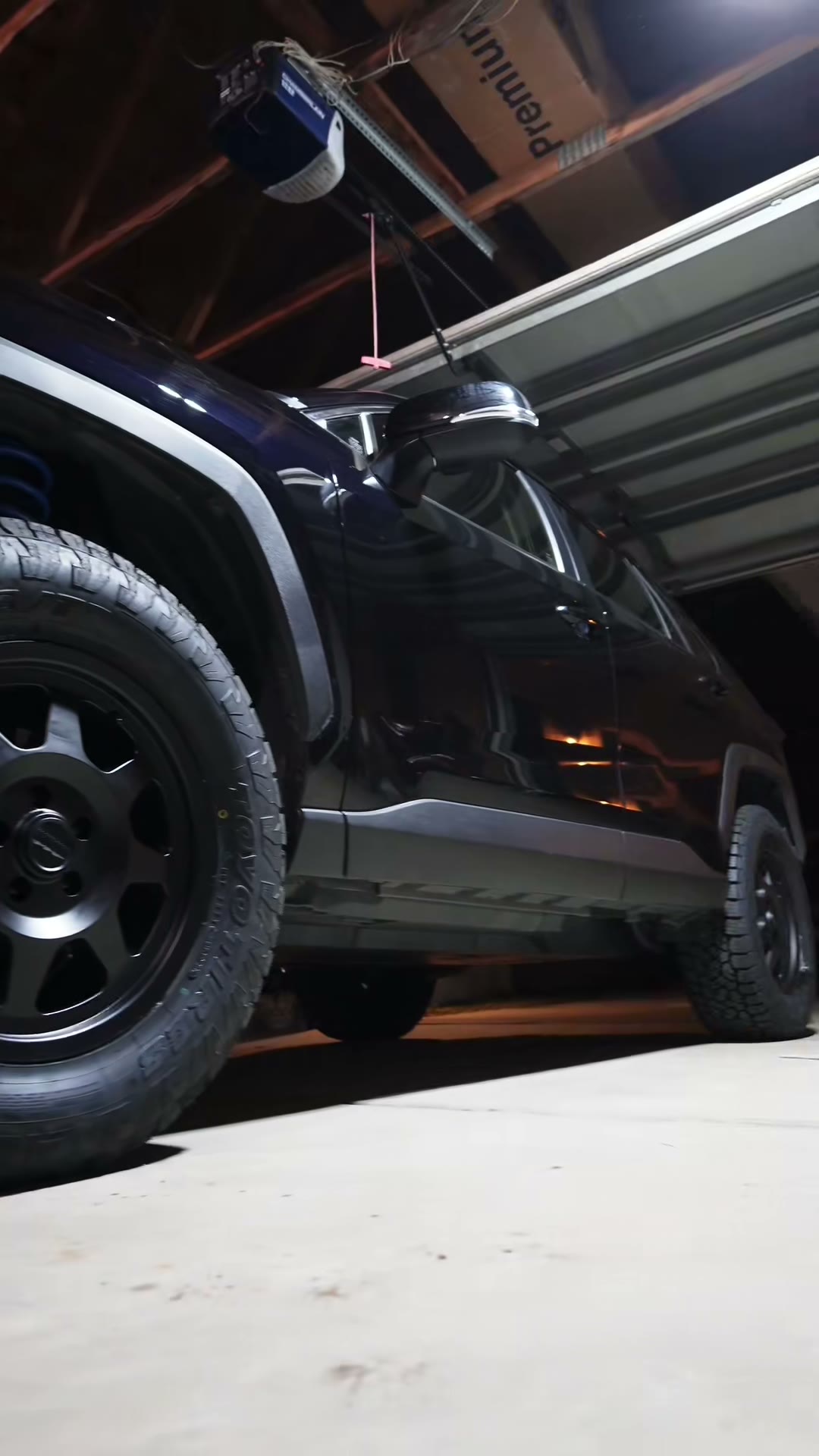

From @zachary_diehl's TikTok, December 2022.

• Method MR701 in matte black, a seven-spoke wheel with straight, angled spokes, about $1,200 for four on sale. The video doesn't give the size or offset.
• Toyo Open Country A/T III in 265/65R17, about 30.6 inches tall, about $1,200 for four, with a 2-inch Northwood Performance lift ($570) on a 2022 RAV4. The whole build came in around $3,000.
• The video only shows the car up close in a dark garage, so there's no full side view.

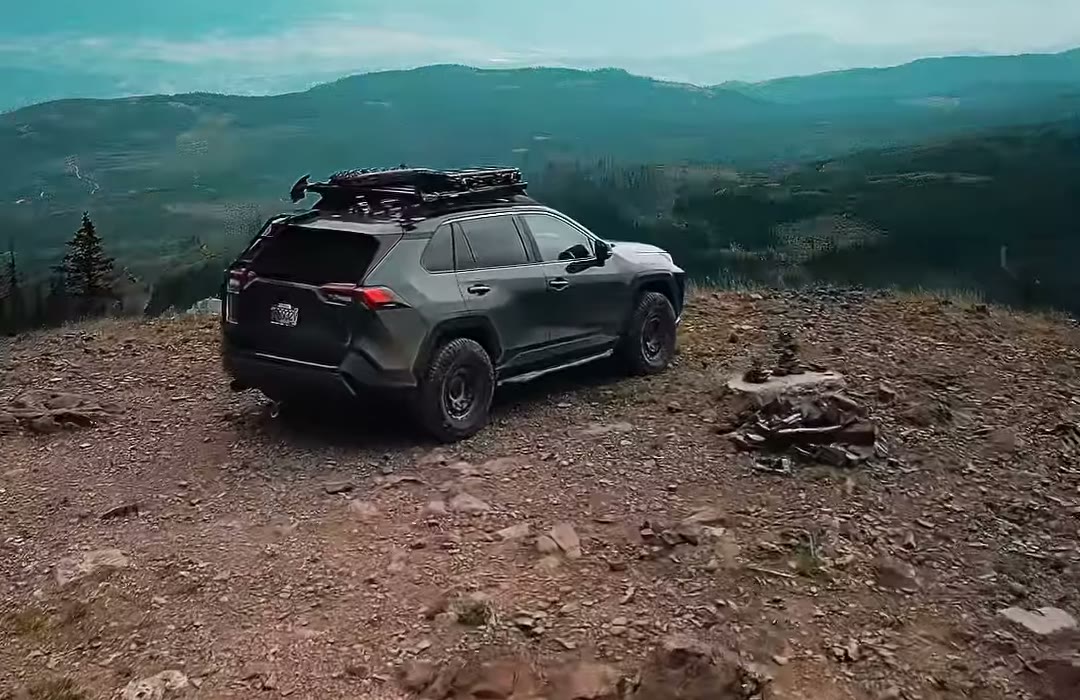

Finish: Black   Setup: 2-inch lift   Tires: Falken Wildpeak A/T and Toyo Open Country M/T, 245/75R16

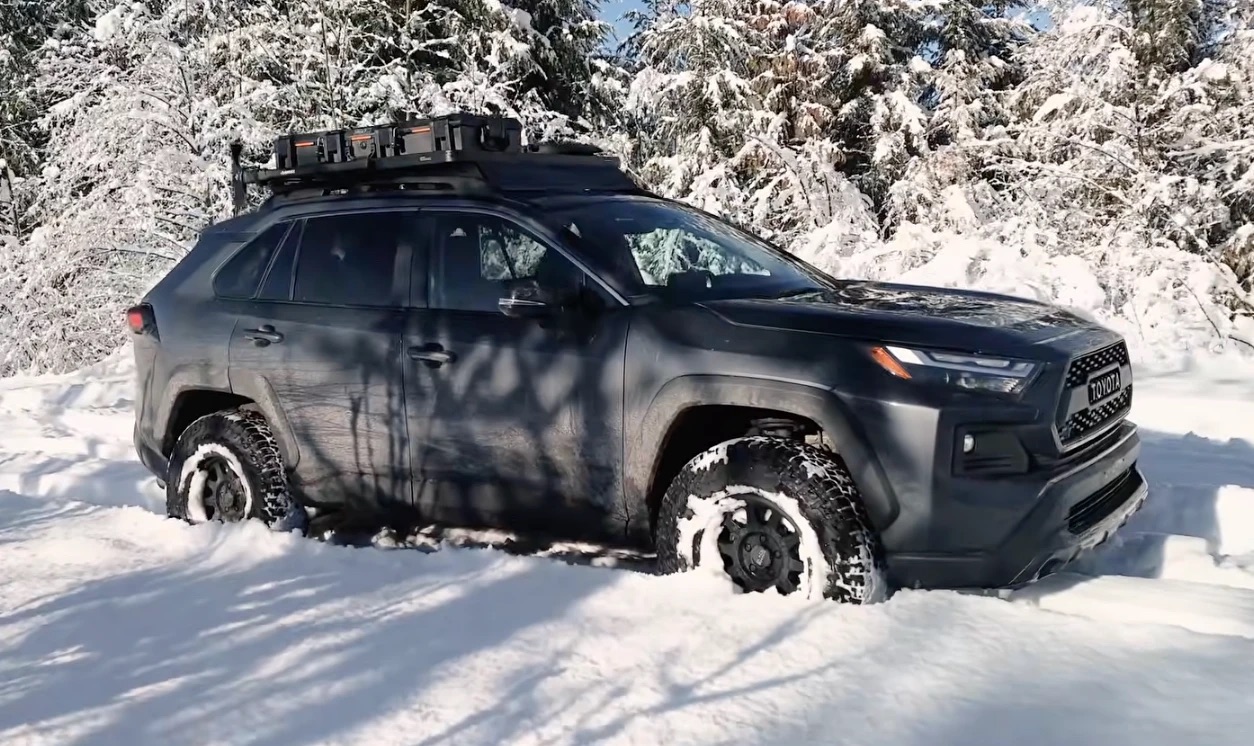

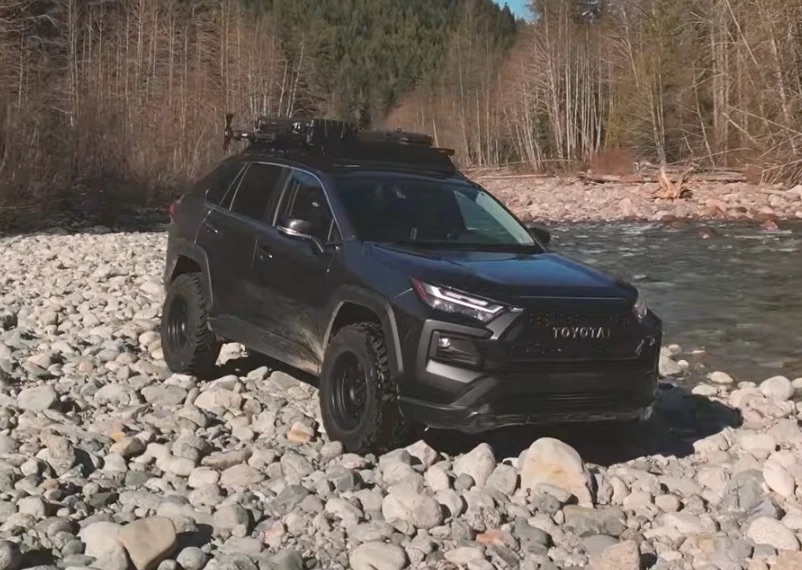

From The Endless Trail's videos: the overlook, Toyo M/Ts by the river and Wildpeak A/Ts in the snow.

• This 2022 RAV4 TRD Off-Road has a 2-inch lift on Dendoff coil springs and Black Rhino Stadium wheels, 16x8 with a -10 offset, which pushes the tires out past the fenders.
• The 245/75R16 tires are about 30.5 inches tall, around 2 inches taller than stock, and won't fit without the lift.
• The owner keeps two sets of tires in this size, Falken Wildpeak A/Ts and Toyo Open Country M/Ts, a mud-terrain. The snow photo shows the Wildpeaks and the river photo the Toyos.
• On the Wildpeaks, the owner climbed a snow-covered forest road with no trouble and said the RAV4 "has actually done incredibly well," but the snow was weeks old rather than fresh or deep (video).
• Mud-terrains like the Toyo M/T give the most aggressive look, but they don't carry the snowflake mark and are the worst kind of tire on ice. They're heavy light truck tires too, which costs mileage.
• This is a gas RAV4. Most lift kits don't fit the hybrid, so check which lifts fit a hybrid first.

Finish: Black   Setup: Stock height   Tires: Falken Wildpeak A/T3W, 245/65R17

From RAV4 & Me's video.

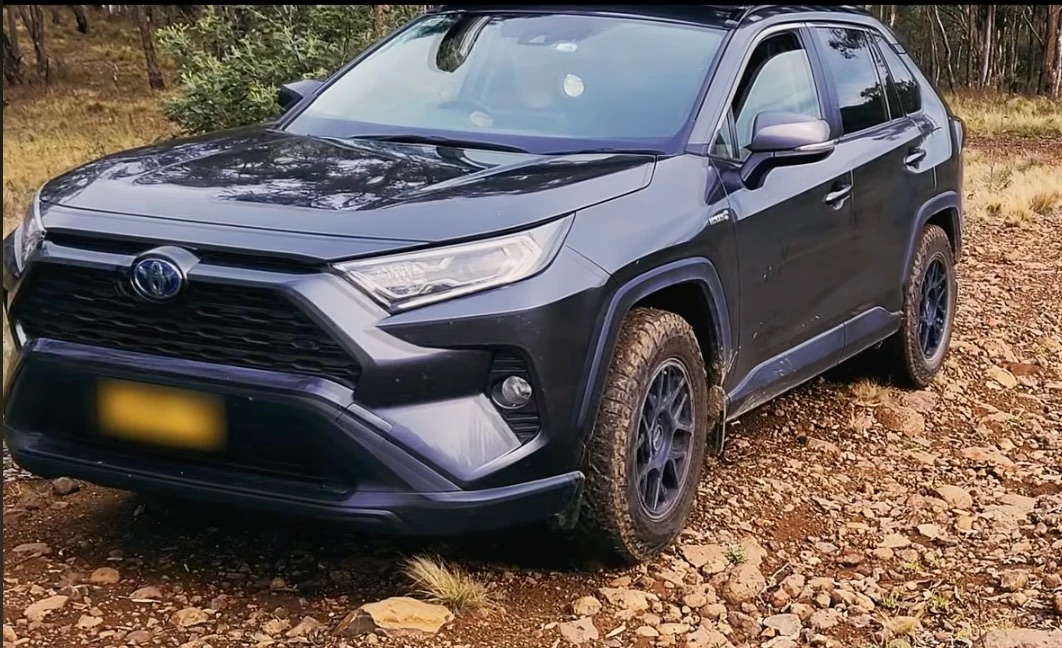

• KMC KM708 Bully wheels on Falken Wildpeak A/T3W tires in 245/65R17, on a RAV4 Hybrid in Australia with a Front Runner roof rack, at what looks like stock height. The owner gave the parts in a reply to a viewer.

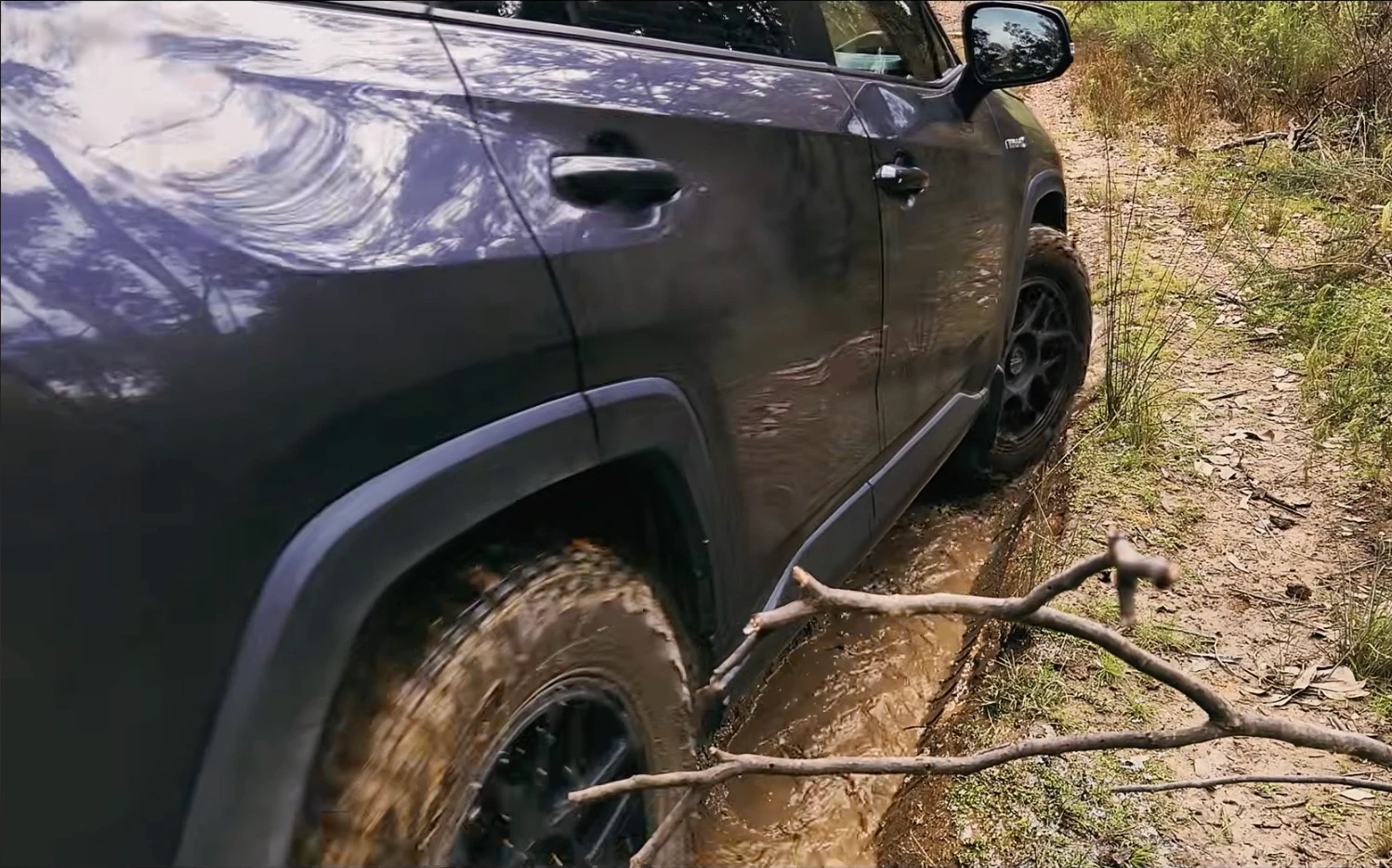

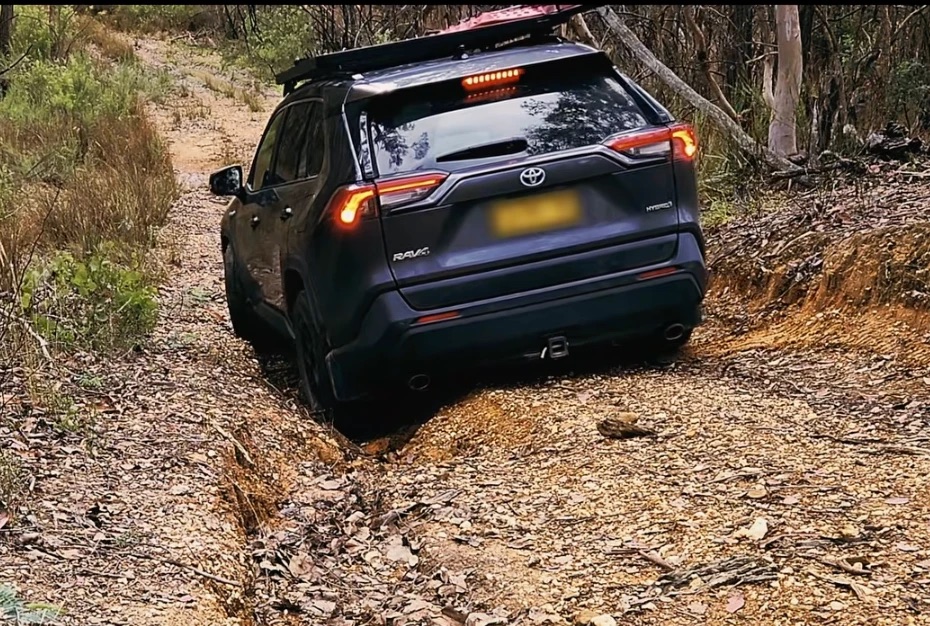

• The video shows it driven through heavy rain, flooded tracks, deep mud ruts and steep rutted climbs in an isolated forest, which is about as hard as a stock-height RAV4 Hybrid gets driven.
• The A/T3W is the version before Falken's current A/T4W.

Finish: Black   Setup: Stock height   Tires: BFGoodrich KO2, 235/65R17

From Custom Offsets' owner gallery.

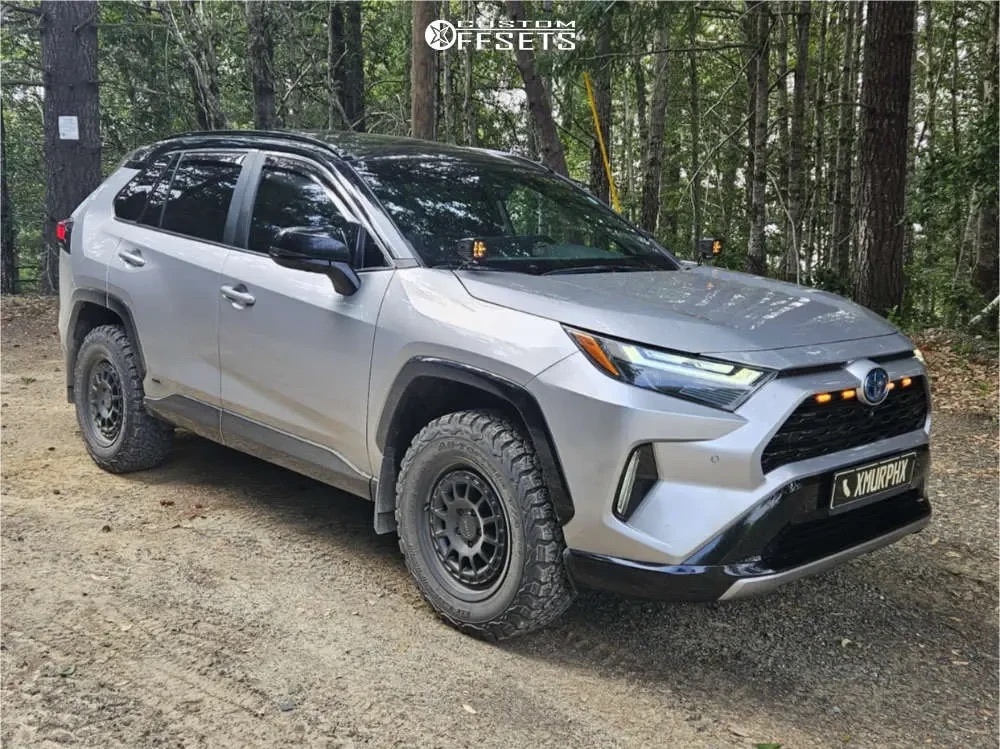

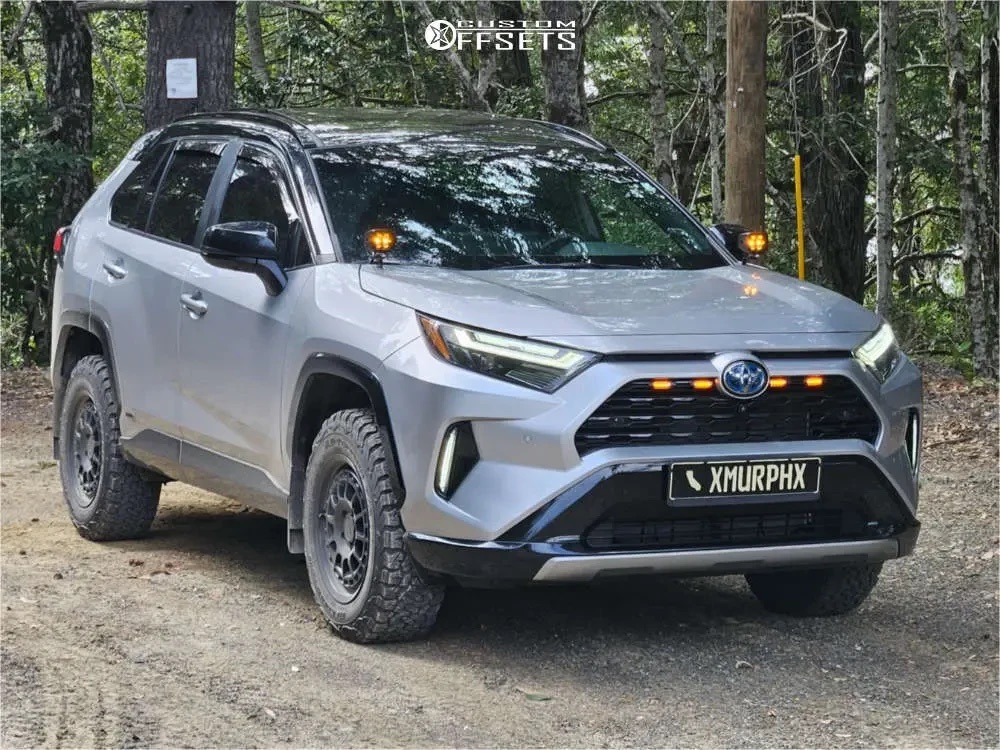

• BFGoodrich KO2 in 235/65R17 on KMC KM719 wheels in satin black, 17x8 with a +35 offset, about $370 a wheel.
• The owner reports no rubbing, no trimming and no spacers on stock suspension.
• BFGoodrich is replacing the KO2 with the KO3, which in this size only comes as a heavy light truck tire. The Toyo A/T III in 235/65R17 is the lighter tire that gives a similar look.

Finish: Black   Setup: Stock height   Tires: All-terrain, brand not given

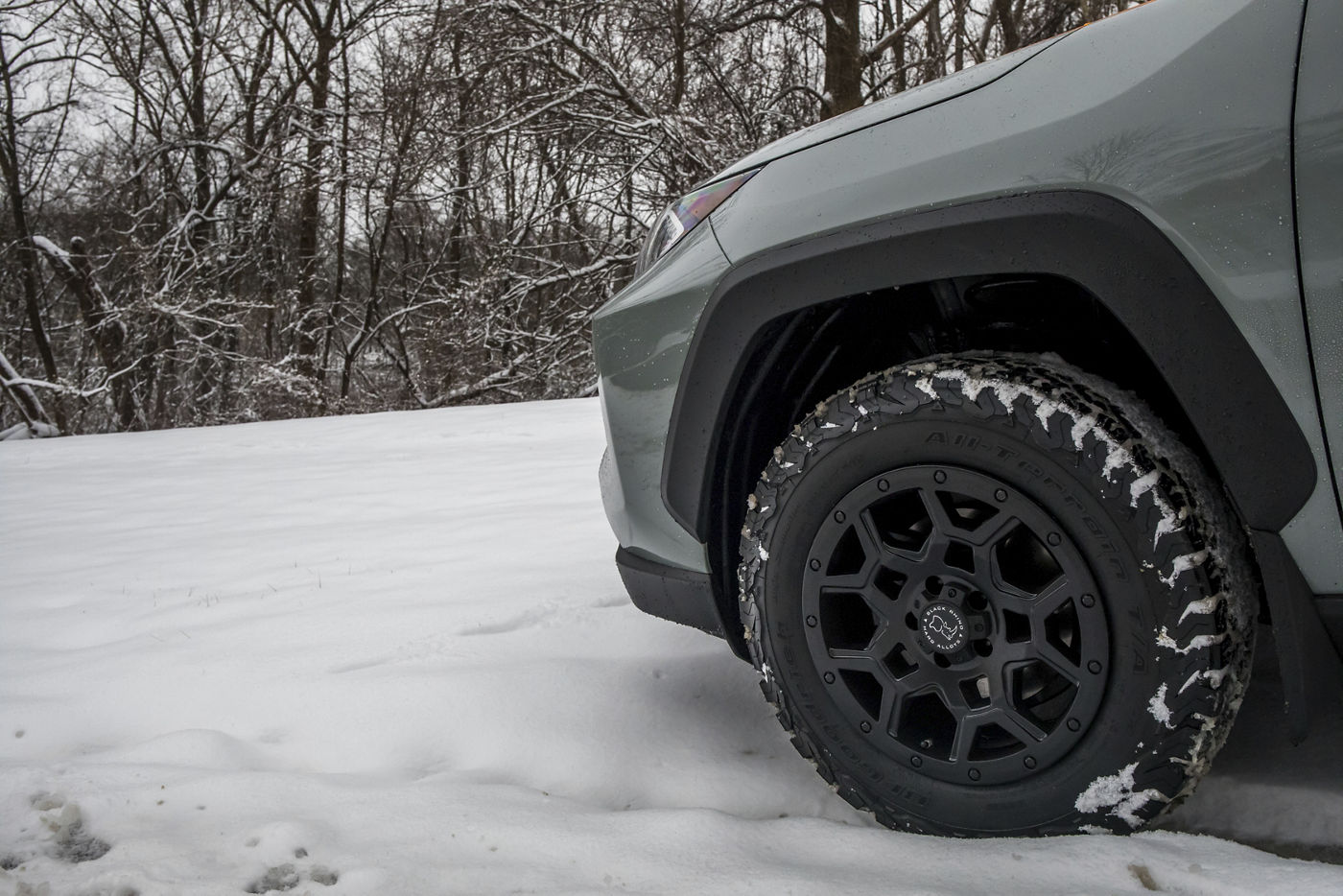

From Black Rhino's vehicle gallery.

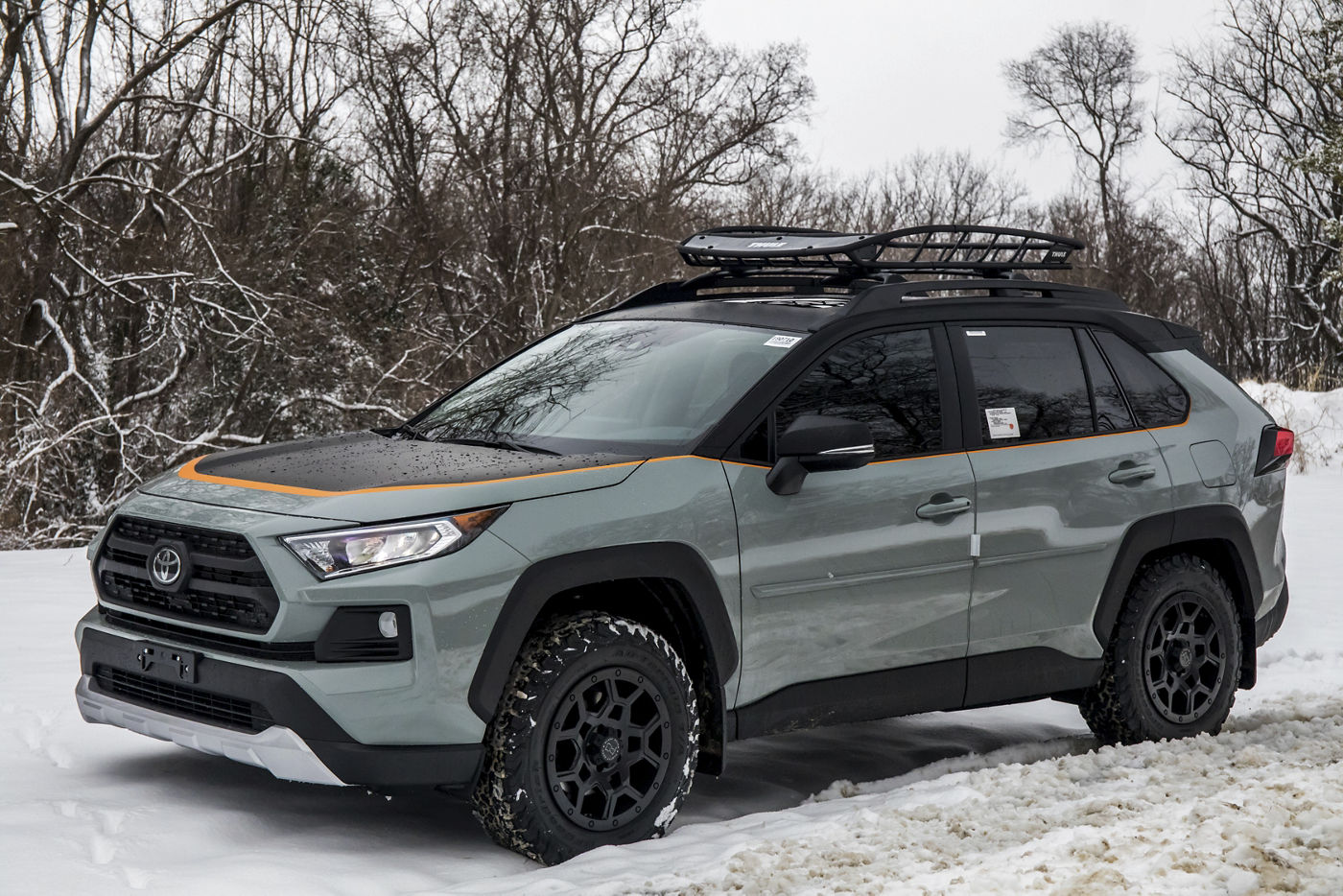

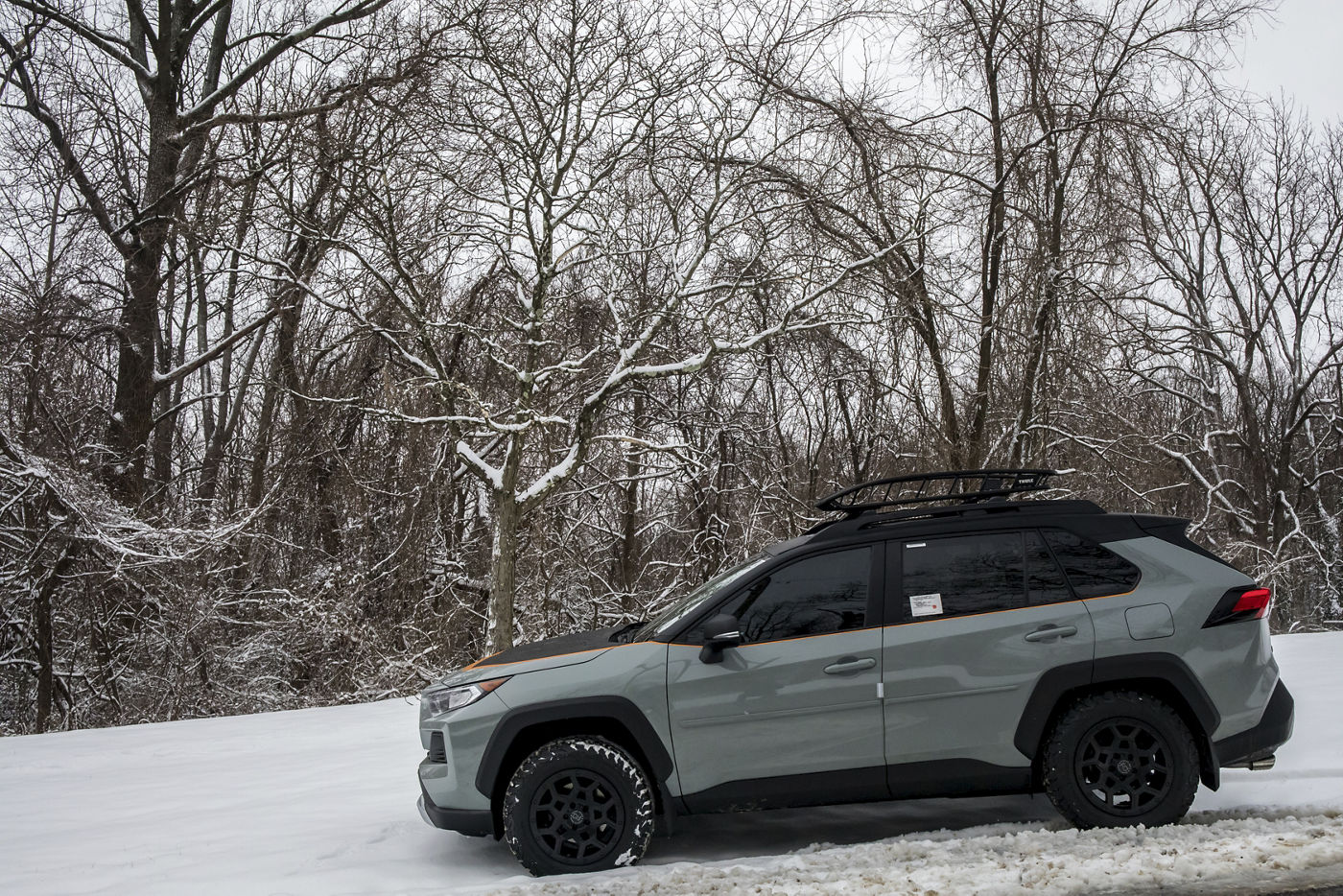

• Black Rhino Overland in matte black, 17x8, on a Lunar Rock 2020 RAV4 Adventure with all-terrain tires, at stock height.
• Six thick, angular spokes give it a dirt-bike look. It's simpler than a mesh wheel but more off-road than a classic five-spoke.
• Black Rhino doesn't list the offset for this car, so check the 5x114.3 version's offset before you buy.

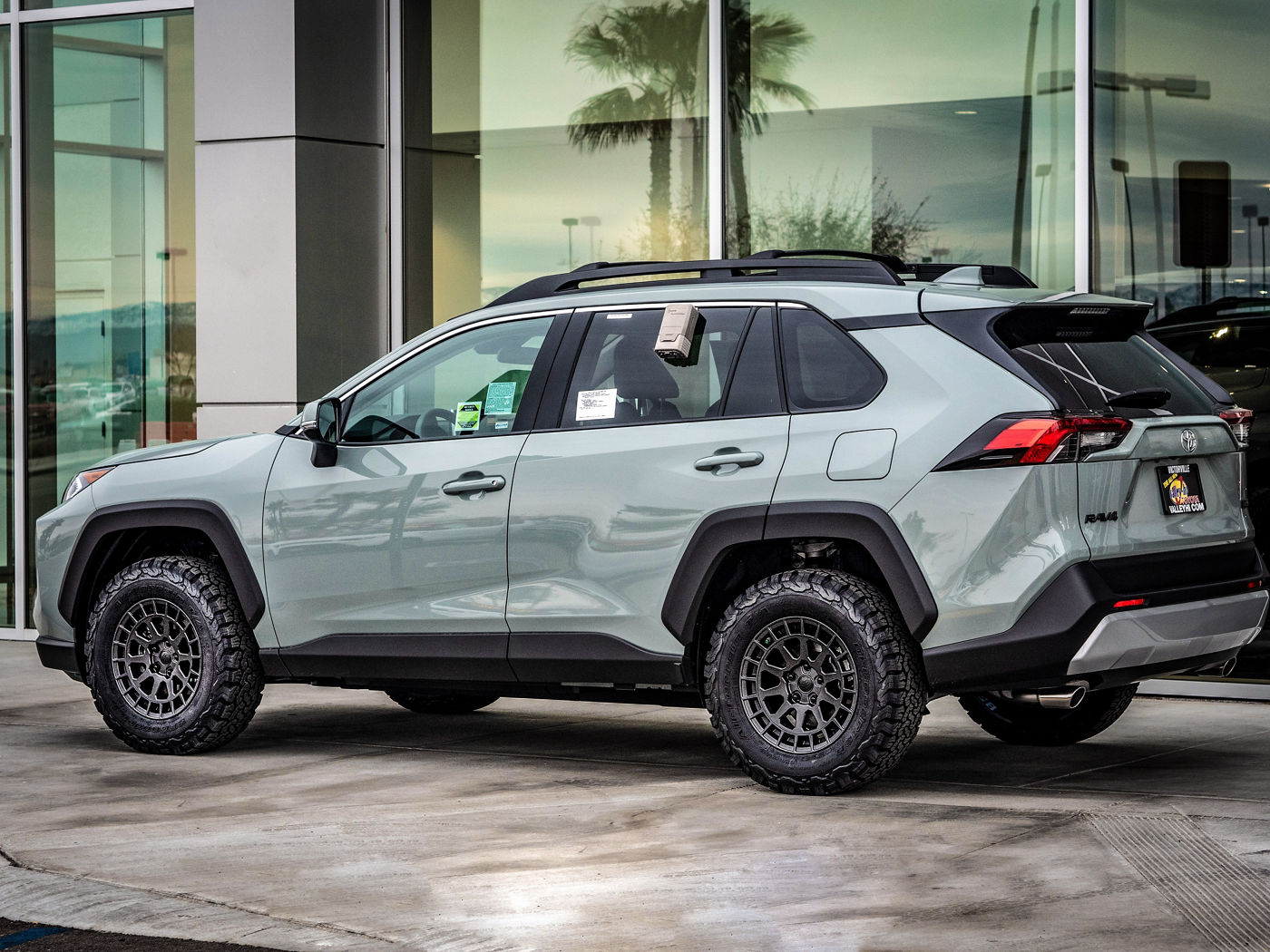

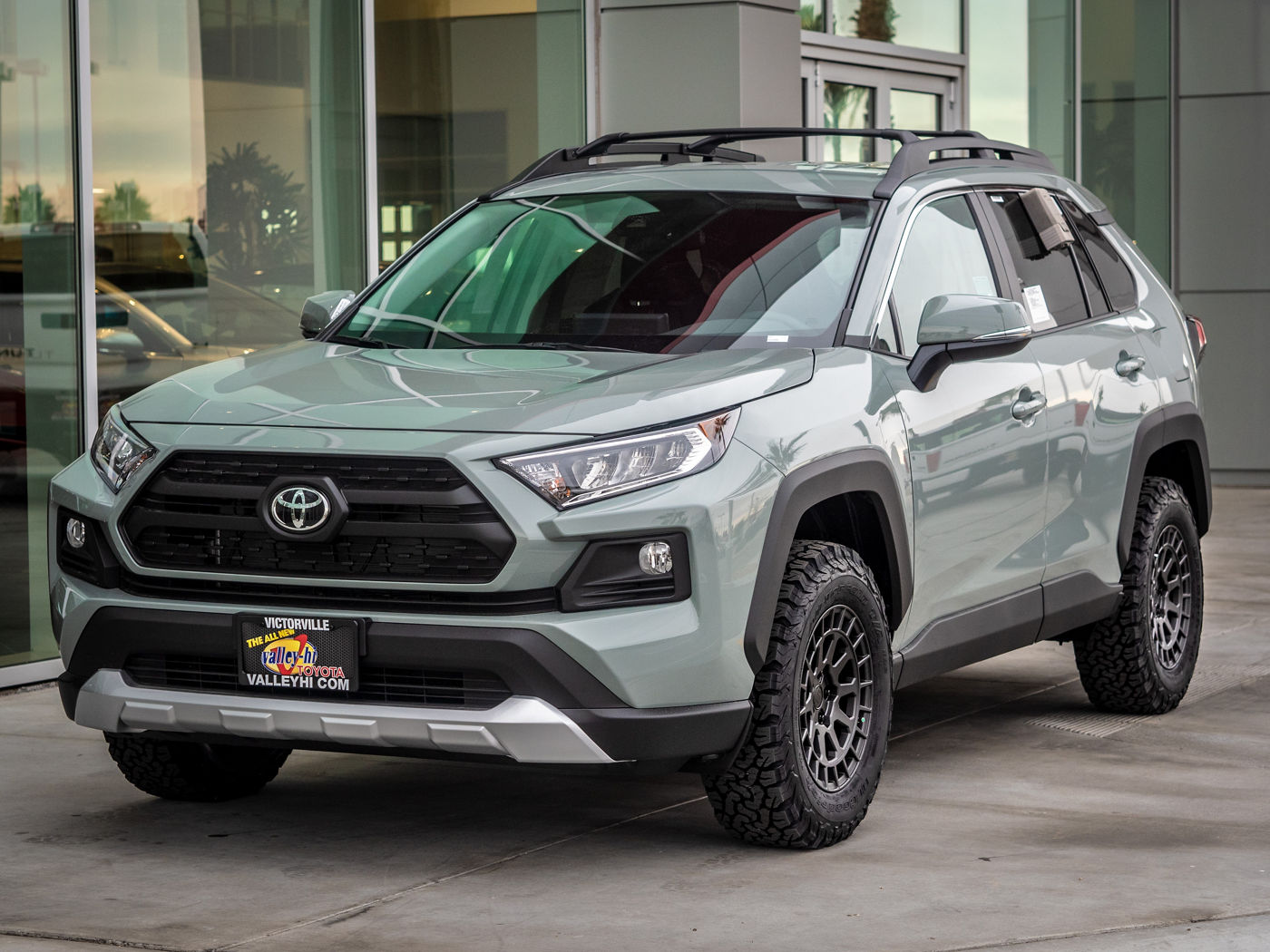

Finish: Black   Setup: Stock height   Tires: Aggressive all-terrain, 16-inch

From Black Rhino's vehicle gallery.

• Black Rhino Boxer in gun black, 16x7 with a +15 offset, on aggressive all-terrain tires, on a Lunar Rock 2020 RAV4 Adventure at a dealer.
• From an angle the many thin spokes blend together. From the side you see every gap, so it looks like a web, and with this tread it reads close to a mud tire.
• A 16-inch wheel with a +15 offset sits about 20 mm further out than the normal RAV4 fit, and 16s can be tight on the brakes, so check fit carefully.

Finish: Black   Setup: Height not given   Tires: BFGoodrich KO2, size unconfirmed

From Perfection Wheels' gallery.

• The same Icon Ricochet wheel in satin black, 17-inch with a +38 offset, on BFGoodrich KO2 tires, on a white 2019 RAV4. Compare it with the satin gold version above.
• The gallery lists the tire size as 255/55R17, which would be shorter than stock, so treat that size as unconfirmed.

Finish: Black   Setup: Height not given   Tires: BFGoodrich KO2, size unconfirmed

From Perfection Wheels' gallery.

• Icon Alloys Journey in satin black, 17-inch with a +38 offset, on BFGoodrich KO2 tires, on a white 2019 RAV4.
• Like the Ricochet card, the gallery lists the size as 255/55R17, so treat it as unconfirmed.

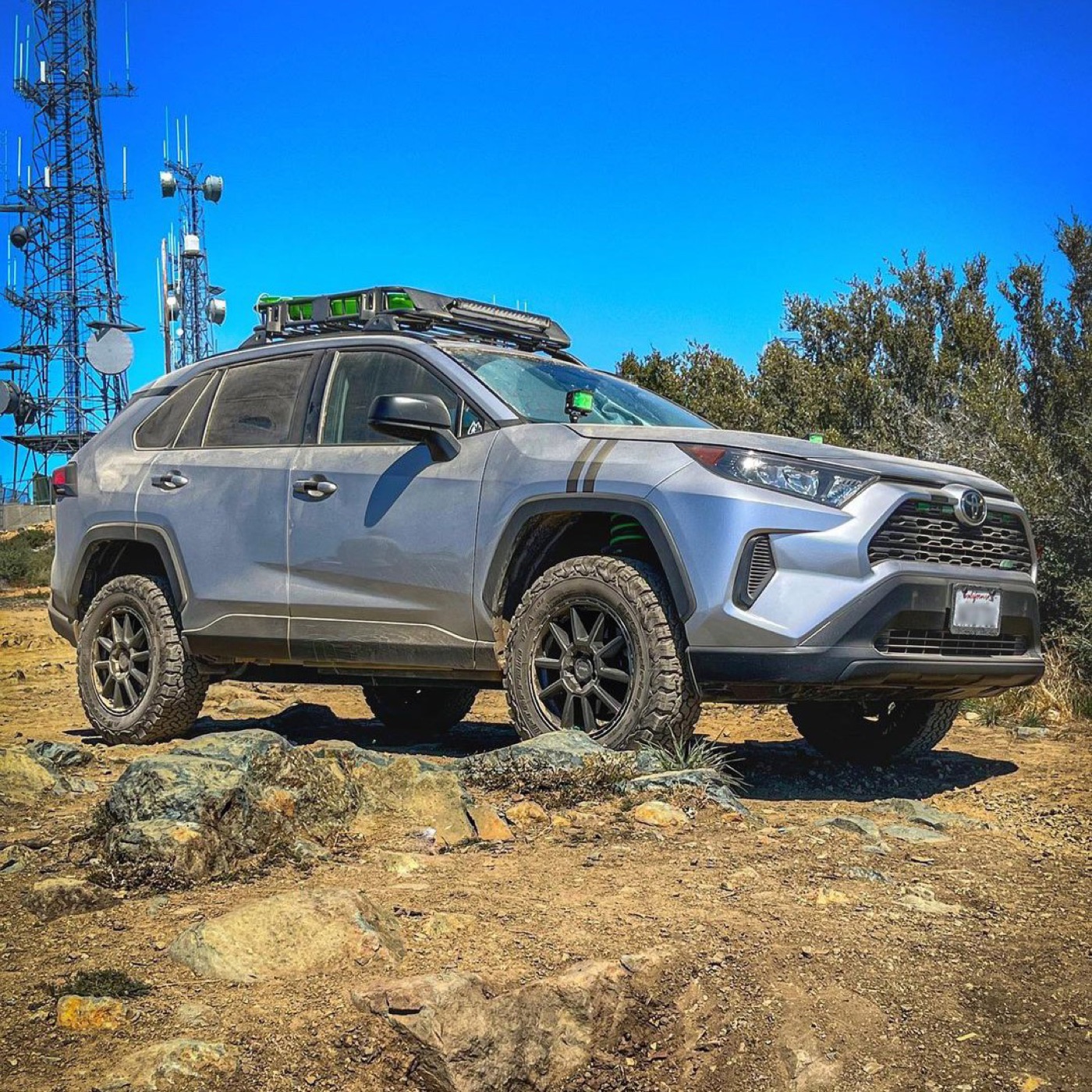

Finish: Black   Setup: Lifted, height not given   Tires: Not given

From Perfection Wheels' gallery.

• Voxx Monte in matte black on a 2021 RAV4. The gallery doesn't list the size, offset, tires or lift.

Finish: Black   Setup: Height not given   Tires: Not given

From Perfection Wheels' gallery.

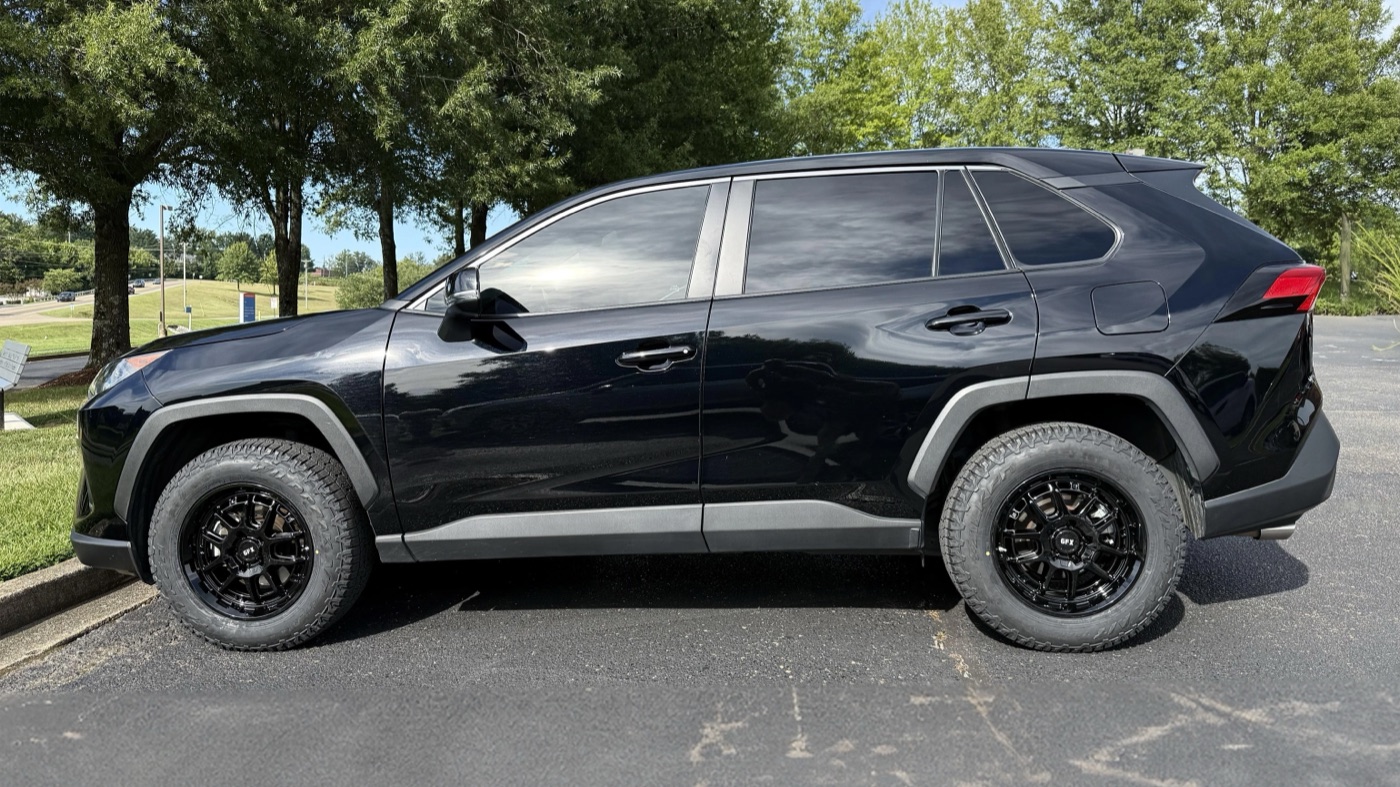

• G-FX TR34 in gloss black on a black 2022 RAV4. The gallery doesn't list the size, offset or tires.
• Black on black hides the wheel, so the look comes from the tire and stance rather than the wheel design.

Finish: White   Setup: Stock height   Tires: All-terrain, brand not confirmed

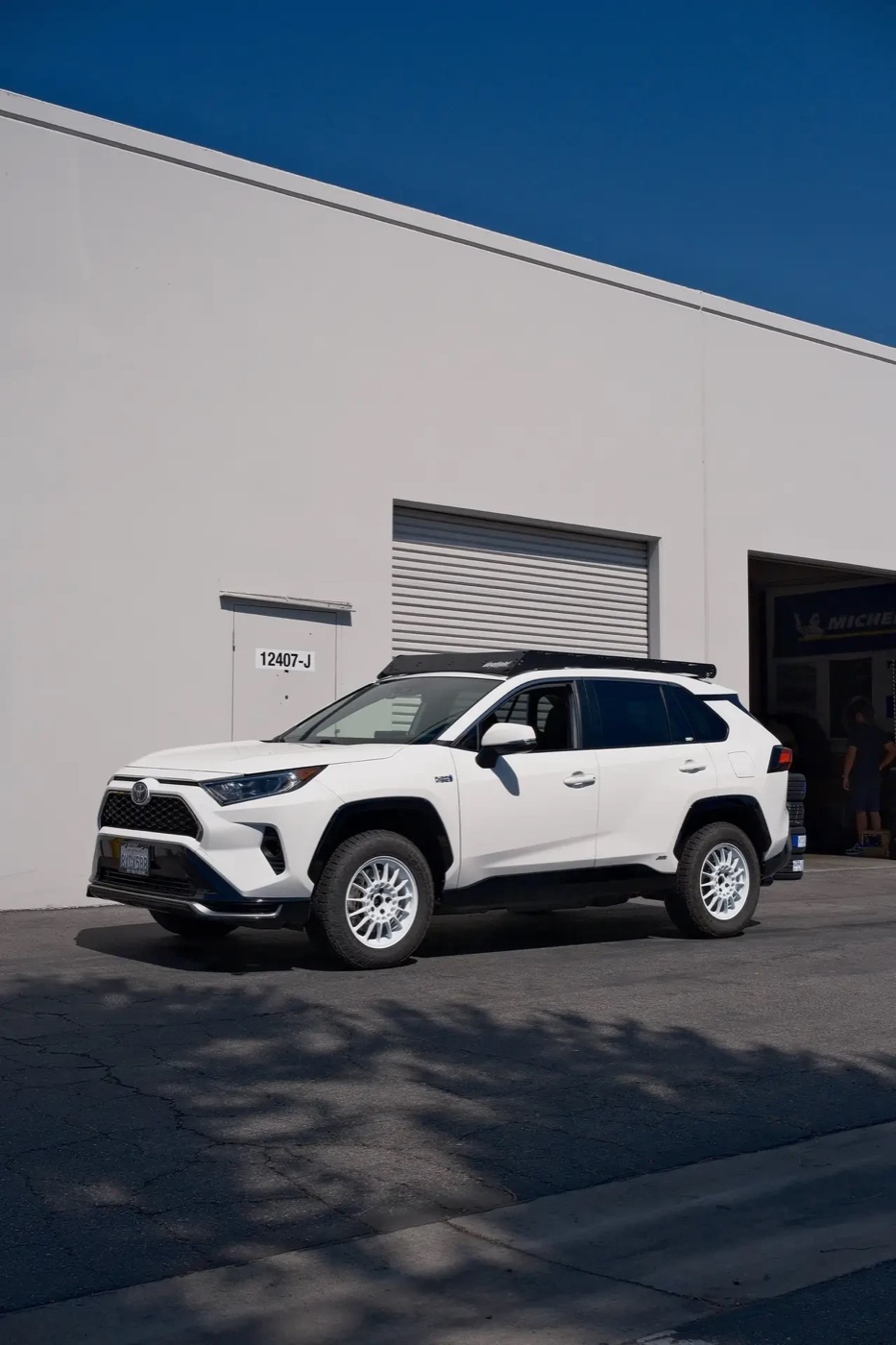

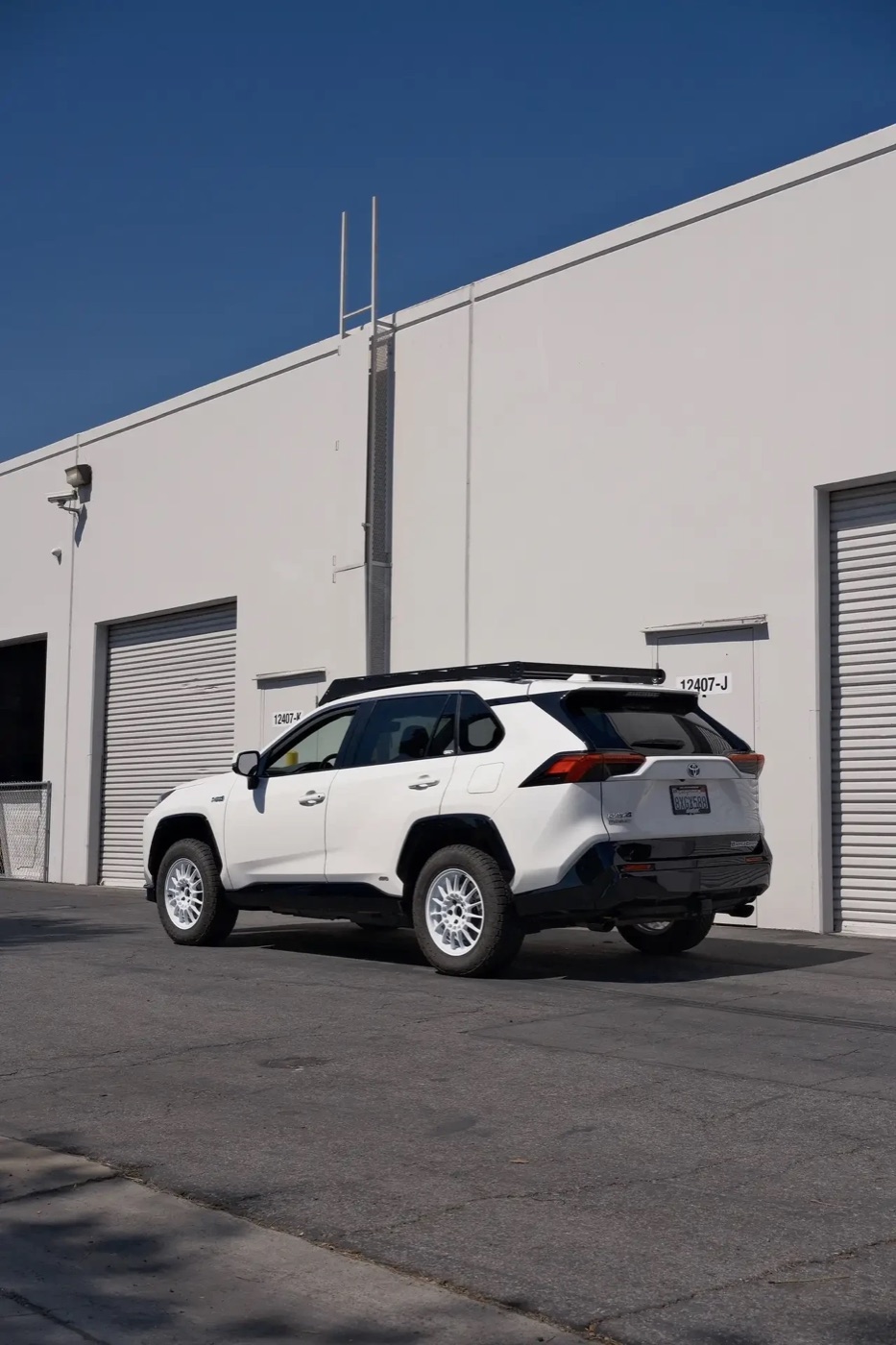

• Gloss white multi-spoke, rally-style wheels on all-terrain tires with a low flat roof rack, at stock height. White on white gives a light, rally-car look rather than the darker overland look of black or bronze wheels.
• The wheel and tire brands aren't confirmed. The wheel looks like a 17-inch rally design such as the fifteen52 Integrale, so treat that as a name to search for.
• White wheels show brake dust and road grime quickly, which matters in winter.

Finish: White   Setup: Looks like stock height   Tires: Falken Wildpeak A/T Trail

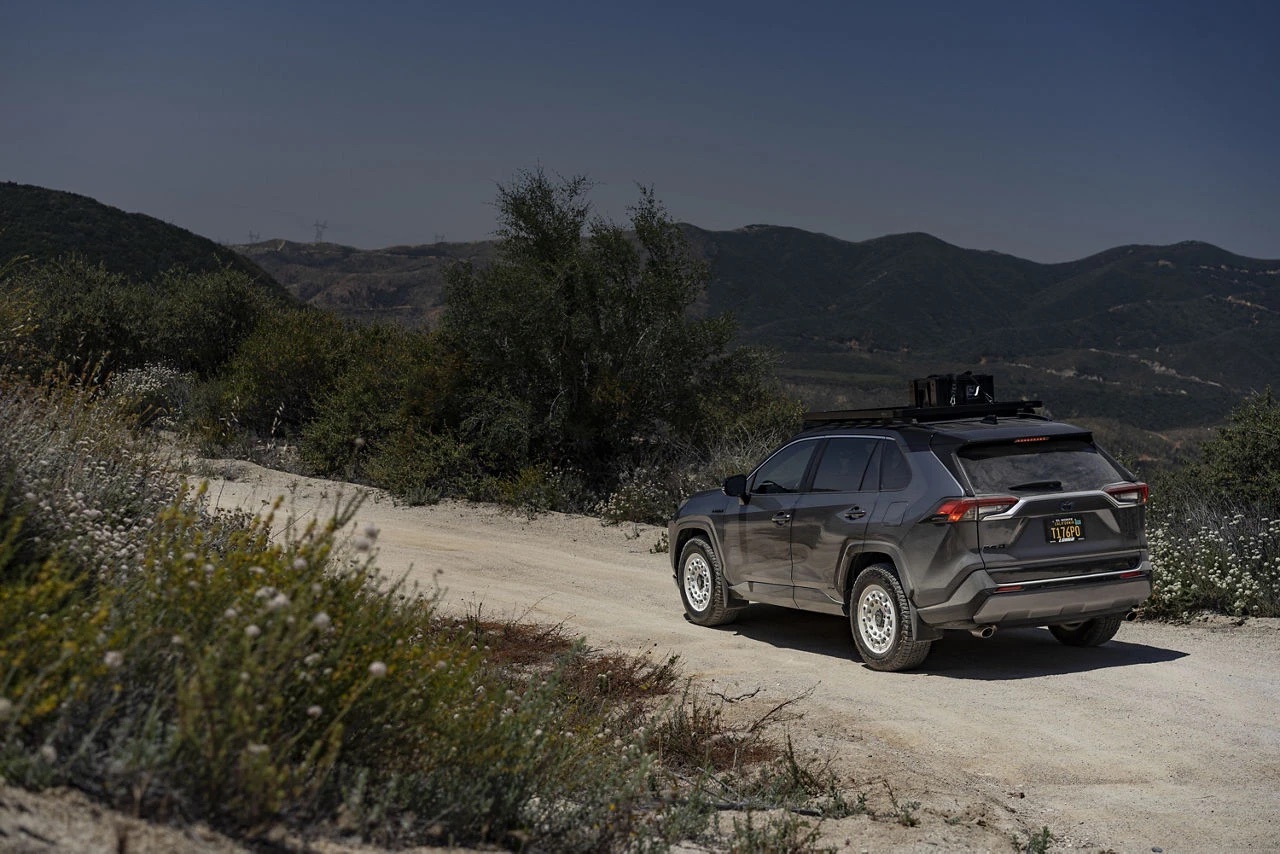

From Black Rhino's vehicle gallery.

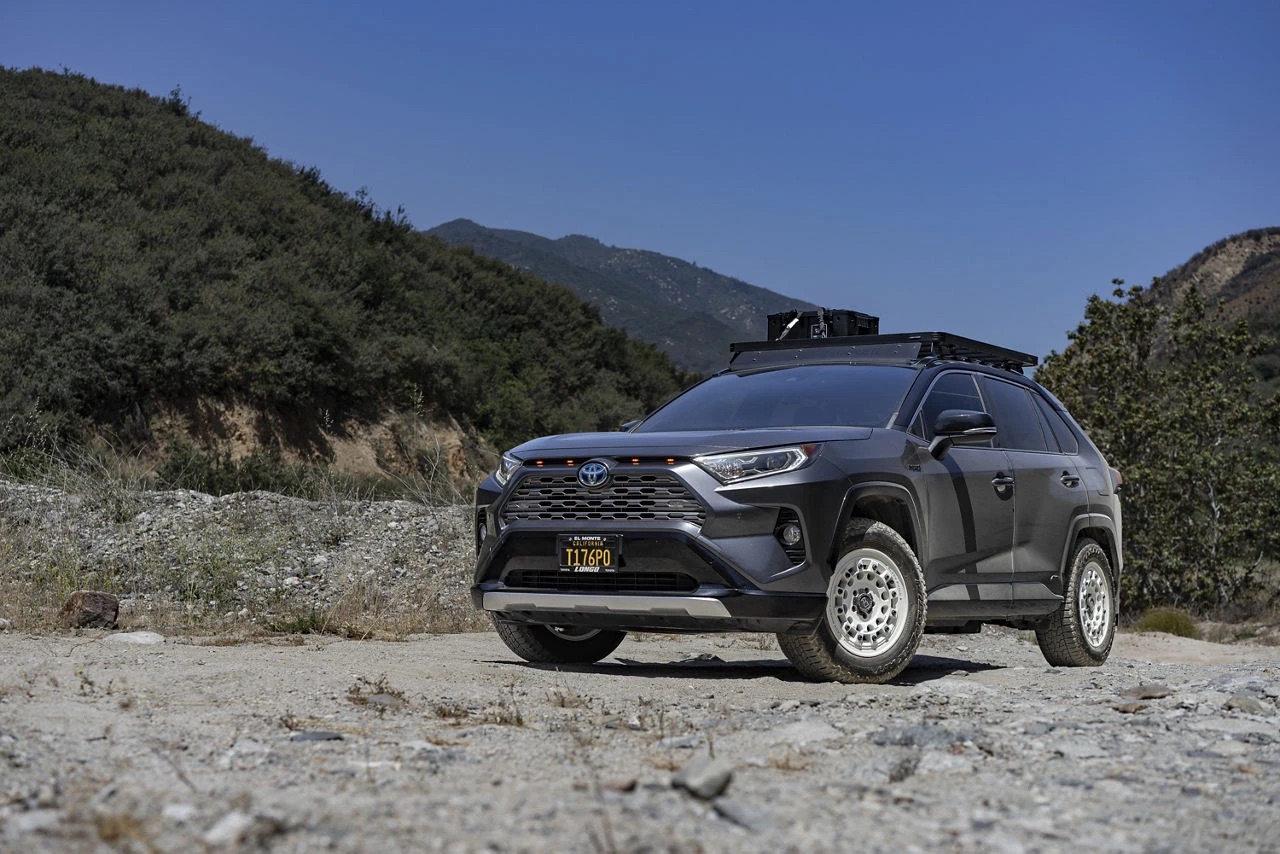

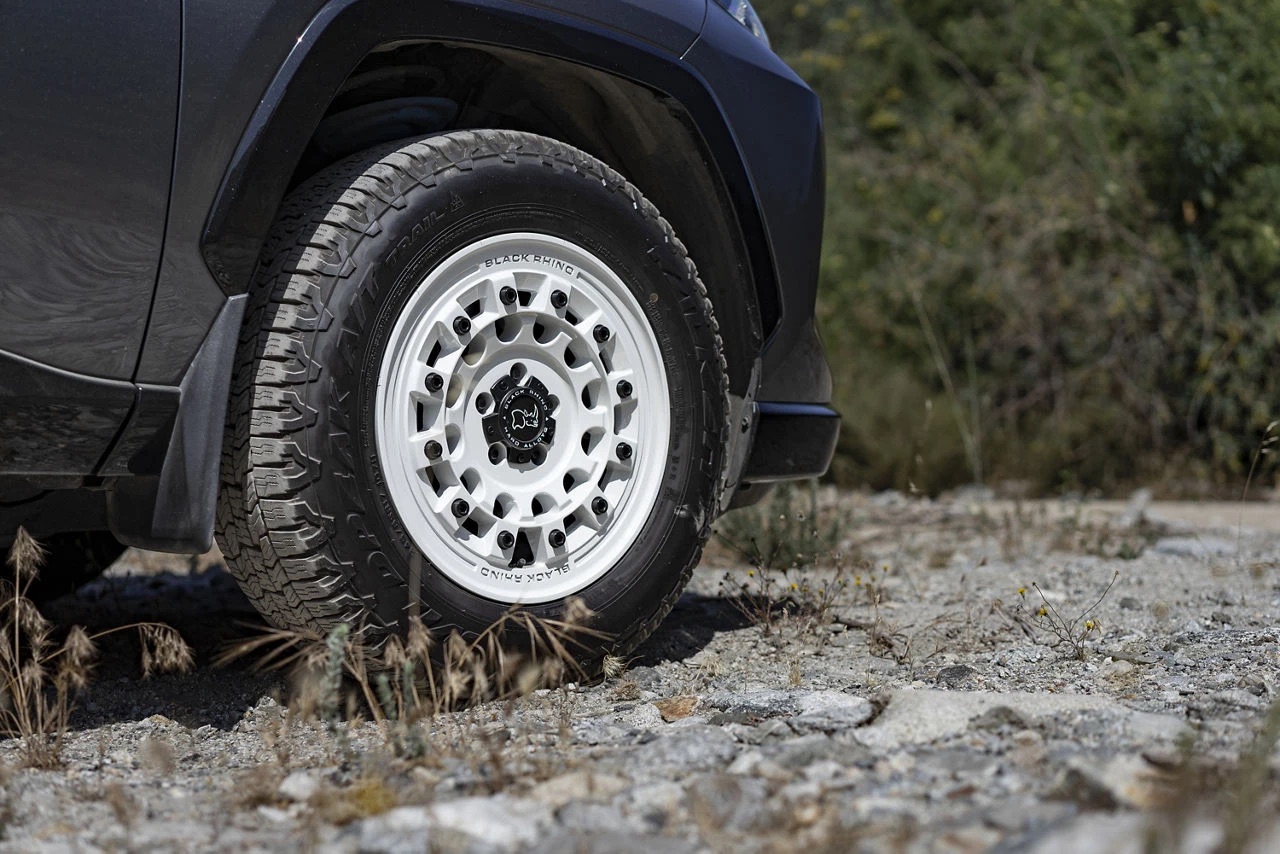

• Black Rhino Fuji in white, a 17-inch cast wheel from about $388, on a 2021 RAV4 at what looks like stock height. Retailers list the Fuji in 17x8 with the RAV4's 5x114.3 bolt pattern and a +38 offset, the normal RAV4 fit, at least in matte black, so check that the white comes in that size.
• The tire sidewall reads A/T Trail, so it's the Falken Wildpeak A/T Trail, a lighter all-terrain built for crossovers.
• White wheels stand out much more against a dark car than a white one. On a gray or black RAV4 they're the focus of the whole look.

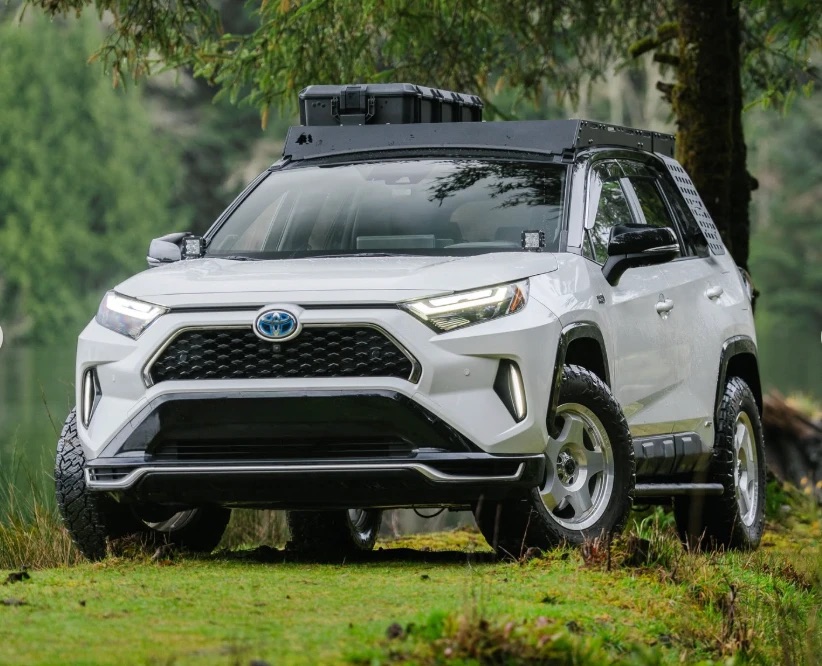

Finish: Silver and machined   Setup: Height not known   Tires: Maxxis RAZR AT, size not known

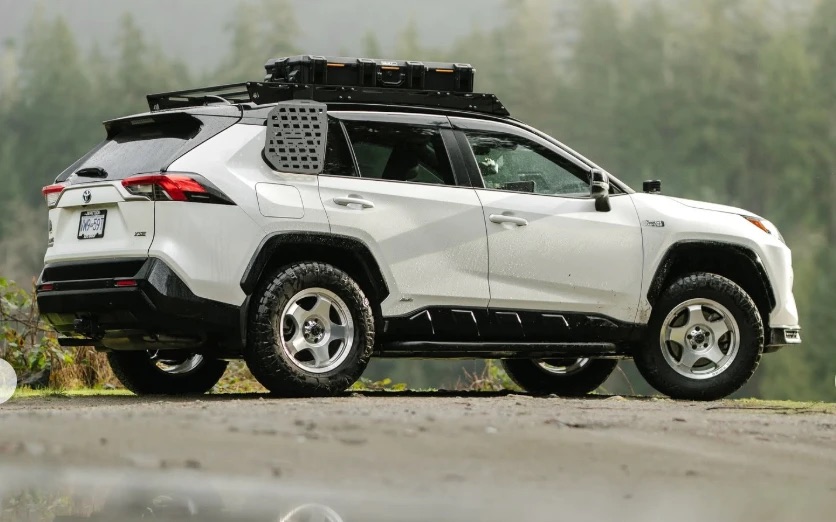

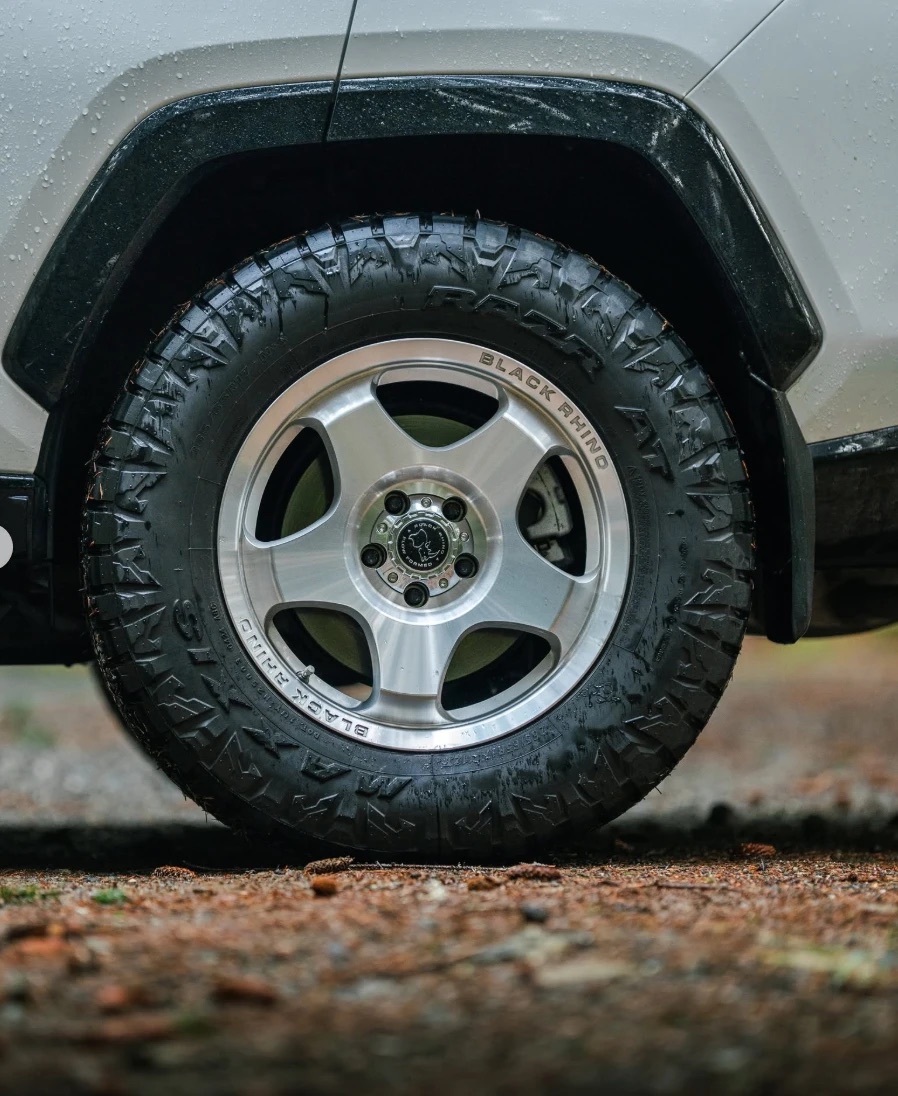

@aka_ricerocket's RAV4, photographed by @legendsofwest, from Black Rhino's Instagram.

• The wheel is the Black Rhino Sol in machined silver, a 17-inch, five-spoke wheel. The tire's sidewall reads RAZR AT, Maxxis's all-terrain, which Maxxis lists with the snowflake mark.
• In the RAV4's 5x114.3 bolt pattern, retailers list the 17x8 Sol at +30 and +20 offsets. The +30 sits about 5 mm further out than the +35 to +40 that a RAV4 normally runs, so ask the seller or a shop whether it fits your car without rubbing before you buy.
• The tire size and whether this car is lifted aren't known. The tires look taller than 245/65R17, so assume it may need a lift.

Finish: Silver and machined   Setup: Stock height   Tires: Douglas Performance road tire, 225/60R18

From Custom Offsets' owner gallery.

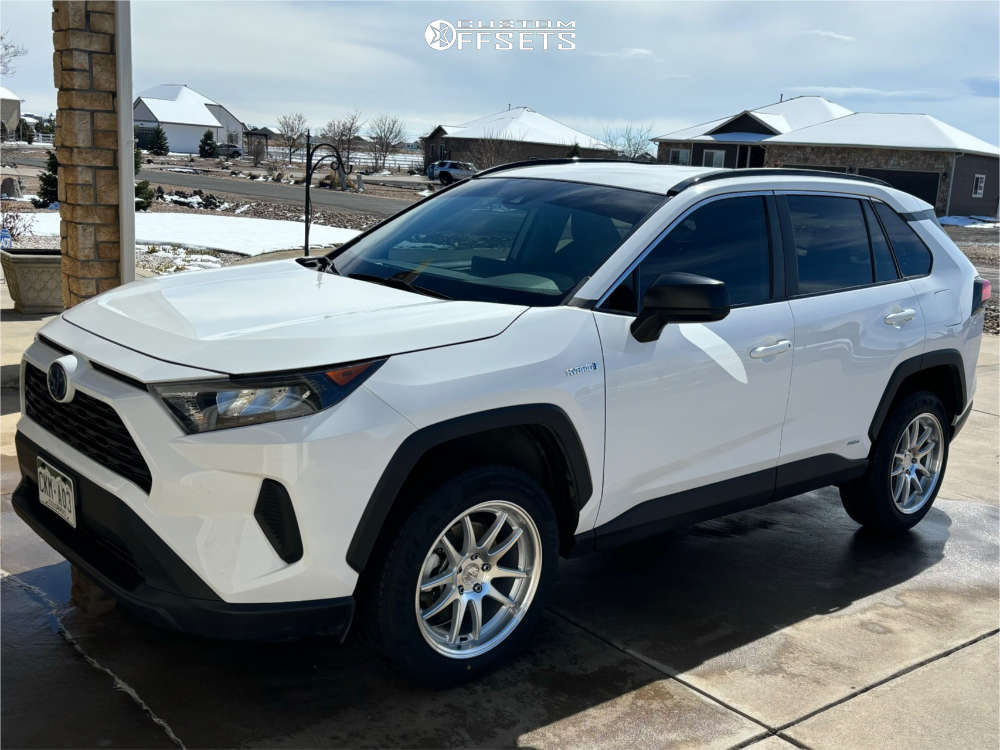

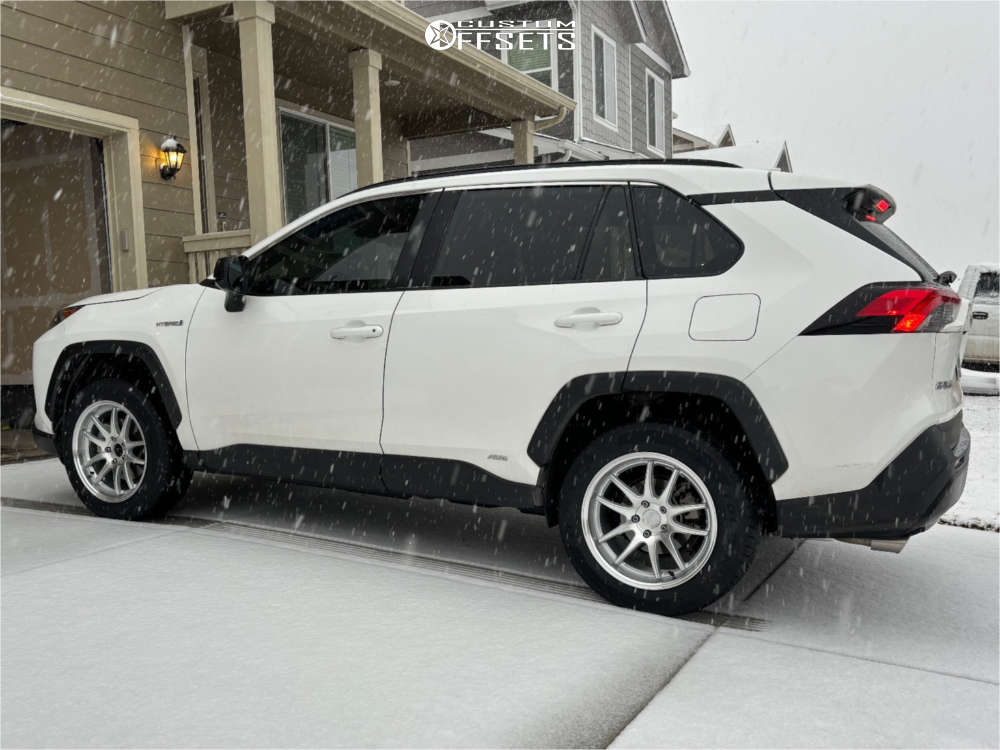

• Aodhan DS02 in silver, 18x8.5 with a +35 offset, about $250 a wheel, on Douglas Performance road tires in the stock 225/60R18 size, on a white 2019 RAV4 Hybrid LE at stock height.
• The owner reports no rubbing, trimming or spacers.
• For comparison with the rugged builds: thin multi-spokes, a bright finish and a low-profile road tire give a sporty street look, the opposite of a dark wheel on a tall all-terrain.

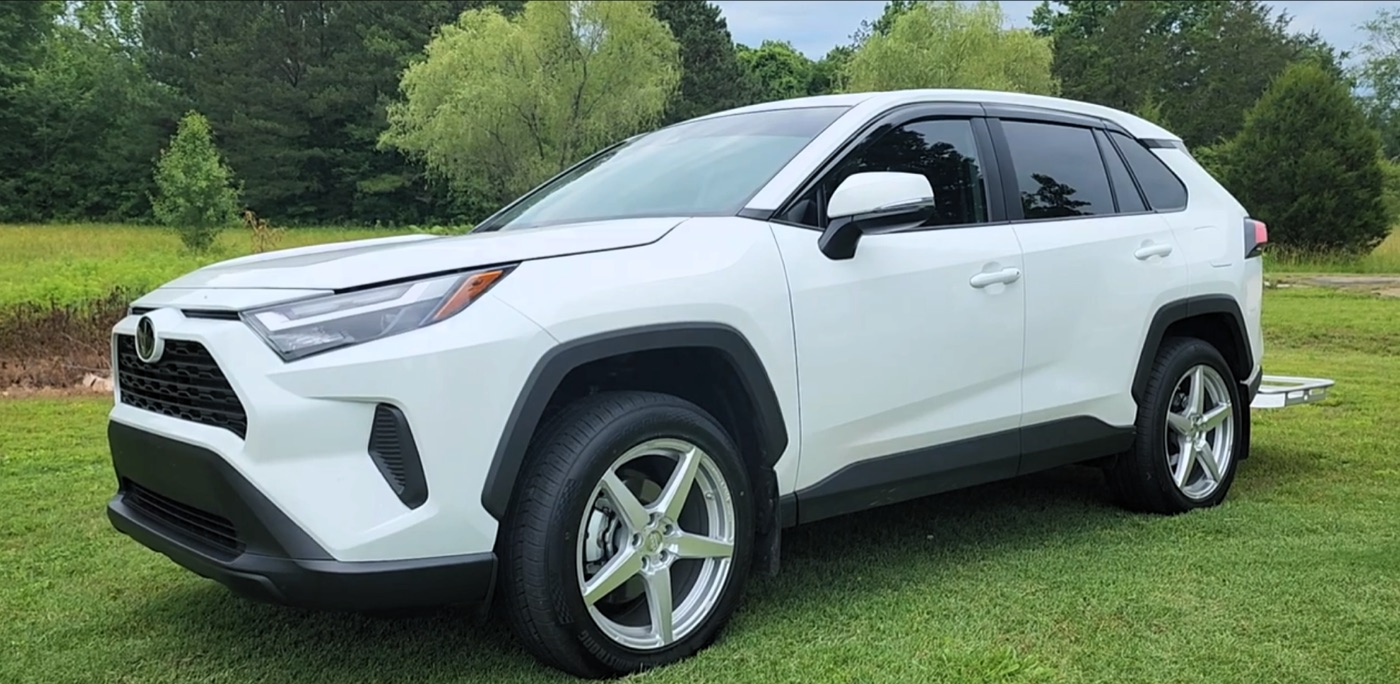

Finish: Silver and machined   Setup: Stock height   Tires: Road tires, size not given

From Perfection Wheels' gallery.

• Voxx Modena with a silver machined face on a white 2024 RAV4, on road tires at stock height. The gallery doesn't list the size or tires.
• A bright five-spoke street wheel, for comparison with the darker rugged wheels.
