What "PKSB Unavailable" means on your RAV4, and how to fix it

Quick picks

What PKSB is, and what "Unavailable" means

So PKSB stands for Parking Support Brake. Basically, PKSB is the automatic braking that works at parking speeds. PKSB cuts the power and puts on the brakes for you when you're about to bump into a wall, a post or a car crossing behind you. PKSB uses the small round sensors in your front and rear bumpers to see walls and objects. And radar sensors in the rear corners of the RAV4 watch for crossing cars.

So when your RAV4 says "PKSB Unavailable," the automatic parking brake can't work for now, usually because a bumper sensor can't see properly. You just won't have the automatic parking brake until the PKSB Unavailable message clears.

On 2019 and 2020 gas RAV4s, the PKSB Unavailable message spells out the full name instead, as "Parking Support Brake Unavailable." And if you want to switch PKSB off on purpose, I go through every step in my guide to turning off the RAV4's automatic braking.

What the PKSB OFF light is telling you

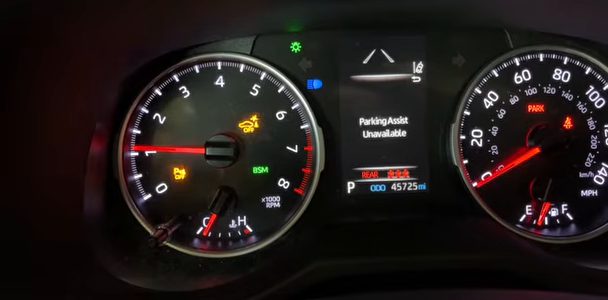

Here's a 2019 RAV4 right after its 12-volt battery was disconnected, with the orange PKSB OFF light flashing in the tachometer and "Parking Assist Unavailable" on the gauge screen, from D Rod's video.

So the PKSB OFF light is a small light on the screen behind the steering wheel. Toyota calls that screen the multi-information display. The way the PKSB OFF light behaves tells you which of three situations you're in.

How to clear "PKSB Unavailable," step by step

So I'd go through these steps in order, because the first two steps fix most cases.

Step 1: If the message showed up right after you started the RAV4, just drive

Toyota's manual says that right after you start the RAV4, "it may be necessary to drive the vehicle for a certain amount of time before the system returns to normal." So if you see PKSB Unavailable in the morning and the message goes away a minute down the road, that's normal.

Step 2: Clean the bumper sensors

So the bumper sensors are the small round dots in the front and rear bumpers, and most RAV4s have four in front and four in back. Toyota says to "clean the sensors and their surrounding area on the bumpers."

1. Park the RAV4.
2. Find the round sensors on the front bumper and the rear bumper.
3. Wipe each sensor and the area around each sensor clean, so there's no dirt, ice or snow left on the sensors.
4. Check that nothing is sitting close to a rear sensor, like a bike rack, a hitch, a hitch-mounted spare tire or a license plate frame.
5. Start the RAV4 and drive normally for a while.

Now if you clean the sensors with a pressure washer, Toyota says to keep the nozzle at least 12 inches away. And Toyota says not to aim the spray straight at the sensors, cameras or radar.

And on a 2026 with Advanced Park, which is Toyota's self-parking feature, PKSB also uses sensors on the sides. So I'd wipe those side sensors as well.

Step 3: If it also says "Clean Parking Assist Sensor," check for ice, snow and rain

Sometimes PKSB Unavailable shows up together with "Parking Assist Unavailable Clean Parking Assist Sensor." That second message is about the same bumper sensors, and Toyota lists three causes:

• Ice, snow or dirt on a sensor. Clean the sensor, and the message should clear.
• A frozen sensor. The message clears on its own once the ice melts.
• Water flowing over a sensor in heavy rain. The message clears once the rain eases up.

One owner has seen PKSB Unavailable come and go only in bad weather, on and off for years. So if the message only shows in rain or snow and clears afterward, the bumper sensors are most likely just reacting to the weather, the way Toyota describes.

Step 4: After the 12-volt battery was disconnected, replaced or went dead

So the 12-volt battery is the small regular car battery. And on a hybrid, the 12-volt battery is separate from the big hybrid battery. Basically, when the 12-volt battery has been disconnected, replaced or run dead, PKSB has to reset itself, and Toyota calls that reset "initialization." And on the 2026 RAV4, Toyota changed how the reset works.

So every 2019 to 2025 RAV4 manual I could read gives the same reset, for gas and hybrid alike. Only the 2026 RAV4 manual changed to "just keep driving."

So for a 2019 to 2025 RAV4, here are the reset steps:

1. Find a straight, quiet road where you can safely go about 22 mph or faster.
2. Drive straight ahead, without turning the steering wheel, at about 22 mph or faster.
3. Hold that for at least 5 seconds.
4. Check whether the PKSB Unavailable message has cleared.

Now on 2019 and 2020 gas RAV4s, the manual adds that if the PKSB Unavailable message keeps showing after the reset, you should take the RAV4 to a Toyota dealer.

Something to note is that on 2019 to 2025 RAV4s, the parking sensor beeps reset with the same drive. And the 2026 manual lists the parking sensors, PKSB, Rear Cross Traffic Alert and rear camera detection as items that reset after a battery disconnect. Rear Cross Traffic Alert is the warning for cars crossing behind you as you back up. So one drive resets the parking sensors and PKSB together.

What owners commonly get wrong about the PKSB reset

Now a lot of reset routines get passed around on forums and in videos, and most of them aren't from Toyota. So here's where each routine actually comes from, and whether you need it.

• "Turn the steering wheel all the way left and right, then drive straight." This routine comes from a different Toyota tech tip, T-TT-0616-20, about the steering sensor on 2019 to 2021 RAV4s. That tech tip is for steering pull after a battery disconnect, not for PKSB. The hybrid speed in that tech tip, 22 mph for 5 seconds, happens to match the PKSB reset, which is probably where the mix-up started. You don't need to turn the wheel all the way left and right to fix PKSB Unavailable.
• "Press the brake twice quickly and hold it for 5 seconds." This brake routine isn't in any Toyota owner's manual. Owners who tried it say the message cleared, but PKSB may simply have reset itself while they drove normally.
• "Drive slowly for about 100 feet, under 30 mph." About 4 owners say this worked for them. But again, Toyota's 2019 to 2025 reset is straight ahead at about 22 mph or faster for 5 seconds.
• "The manual says to drive for over 5 minutes." The manual doesn't say that. The 5 in Toyota's reset is 5 seconds.
• "Check the fuse." PKSB Unavailable isn't a fuse problem. Owners who looked for a fuse were told to just drive.

But keep in mind that PKSB Unavailable often clears up on its own. One 2019 owner had the message after a dead battery and a jump start, and by the next day the warnings had all cleared on their own.

Other causes owners have run into

• A weak or failing 12-volt battery. In about 4 forum threads, owners got a whole group of warnings at the same time. The warnings included PKSB, the Pre-Collision System (forward crash braking), lane assist, the parking brake and ABS (the anti-lock brakes). One 2024 Limited Hybrid owner's warnings went away after he charged the 12-volt battery. So if several warnings show up together, I'd have the 12-volt battery tested first. Owners say auto parts stores will test the 12-volt battery for free.
• Bad aftermarket wiring. Two owners got "PKSB Malfunction" along with other faults after adding things like grille light kits or add-a-fuse taps, which plug into the fuse box to power accessories.
• After brake work. One 2020 RAV4 Hybrid owner got the message after brake work.
• After being stuck in snow. One owner got the message after getting stuck in snow and spinning the wheels, and the dealer cleared it.

When to take your RAV4 to a Toyota dealer

So Toyota's manual says to see a Toyota dealer in these situations:

• The PKSB OFF light flashes with a buzzer, or the multi-information display says "PKSB Malfunction." Toyota says to have the RAV4 inspected immediately.
• The PKSB Unavailable message stays after you cleaned the sensors, or the bumper sensors weren't dirty to begin with.
• The message keeps coming back after the 12-volt battery reset on a 2019 or 2020 gas RAV4.

And from what owners say, I'd also go to the dealer if several warnings come on together and the 12-volt battery tests fine. But otherwise, cleaning the sensors and driving a bit fixes PKSB Unavailable for most owners.
